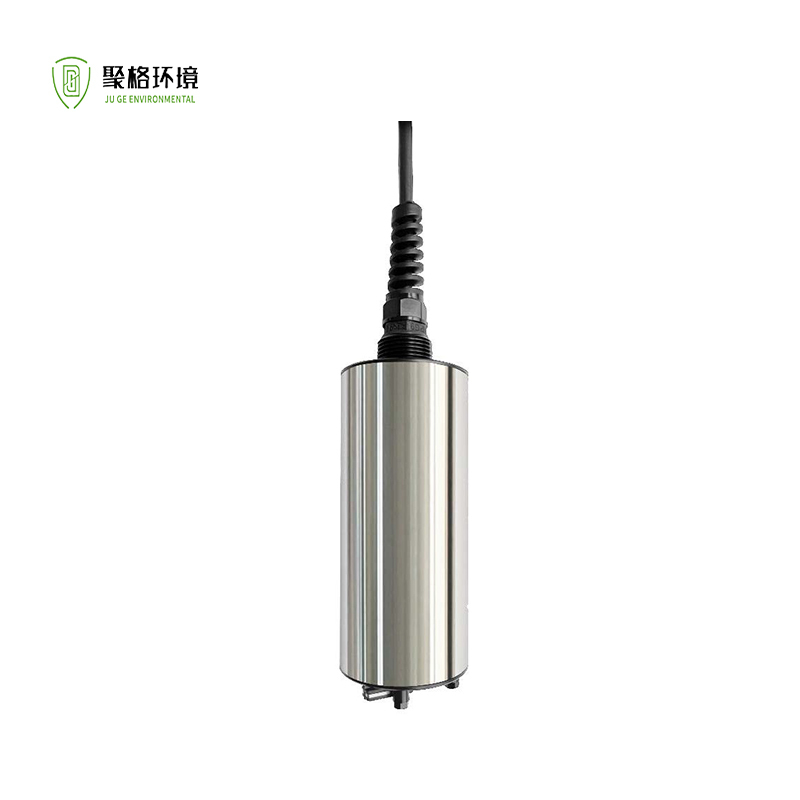

Digital RS485 Turbidity TSS Sensor Dual Beam 90° 140°

Brand Name:	JUGE
Model Number:	AG-302
MOQ:	1 Unit
Price:	USD300-2000
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

‌Measured Parameters:

Turbidity + TSS+ Temperature

Measurement Method:

Infrared Scattering Method

‌Measurement Type:

Immersion

Range:

TSS: 0-50g/L Turbidity: 0-4000NTU Temp: 0-60℃

Supply Ability:

100 Unit/Week

Highlight:

RS485 turbidity sensor dual beam

digital TSS sensor 90° 140°

optical turbidity sensor with warranty

Product Description

Dual Beam 90° 140° Digital RS485 Turbidity and TSS Sensor

Key Attributes

Attribute	Value
Measured Parameters	Turbidity + TSS + Temperature
Measurement Method	Infrared scattering method
Measurement Type	Immersion
Range	TSS: 0-50g/L Turbidity: 0-4000NTU Temp: 0-60℃

Product Overview

The AG-302 digital turbidity sensor, designed based on the ISO7027 standard method, adopts a digital, intelligent sensor concept. It automatically compensates for the impact of light source intensity fluctuations, temperature changes, and other factors on measurement values. This sensor directly outputs standardized digital signals, enabling networking and system integration without the need for a controller. Widely used in industries such as surface water monitoring and pollution source detection.

Key Features

Utilizes a high-brightness 875nm LED as the light source, eliminating the influence of sample color
Dual-beam (90°+140°) design for wide dynamic range measurement
Digital modulation coherent demodulation detection technology ensures high precision, excellent stability, and strong anti-interference capability
Advanced optical and electronic filtering technology to eliminate the impact of ambient light on measurements
Built-in light source intensity reference detection, unaffected by LED degradation
RS485 signal output enables seamless integration and networking with other devices
Automatic cleaning brush significantly reduces maintenance workload

Technical Specifications

Parameter	Specification
Model	AG-302
Measured Parameters	Turbidity + TSS + Temperature
Measurement Method	Infrared scattering method
Measurement Type	Immersion
Range	TSS: 0-50g/L Turbidity: 0-4000NTU Temp: 0-60℃
Accuracy	≤±5%
Repeatability	≤3%
Resolution	TSS: 0.1 mg/L Turbidity: 0.1NTU
Detect limit	TSS: 5 mg/L Turbidity: 0.5NTU
Response Time	≤10 s
Zero Drift (24h)	≤±2% F.S.
Span Drift (24h)	≤±3% F.S.
Calibration Interval	6 months
Temperature Range	(0-60)°C
Protection Rating	IP68, under water 60m
Cleaning method	Mechanical electric scraper brush
MTBF	≥1440 h/occurrence
Communication	RS485 (Modbus RTU), max. baud rate 115200 bps
Power Supply/Consumption	(12-28) V DC / 0.5 W
Material	S316L or titanium alloy
Weight/Dimensions	600 g / Ø60 mm × L147 mm
