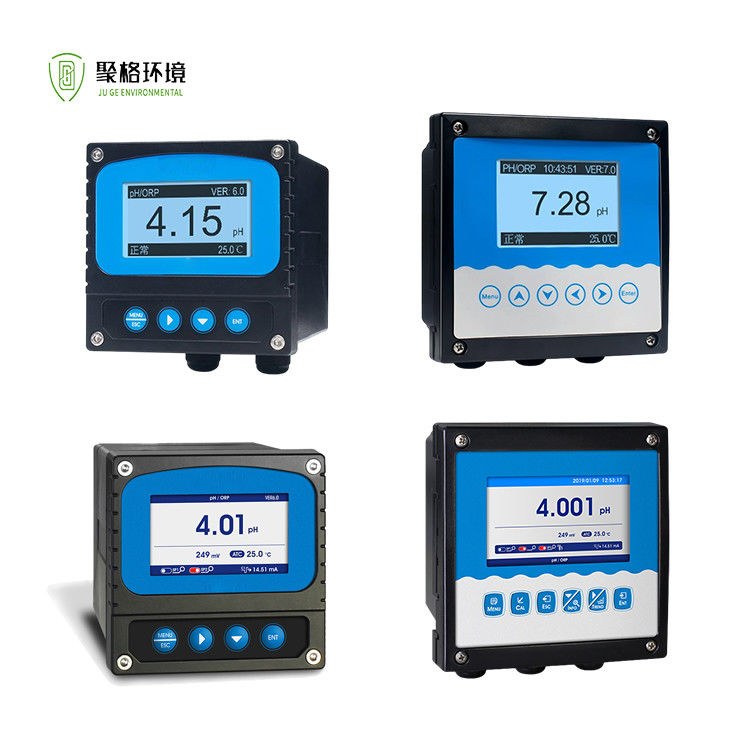

Industry PH ORP Controller Online PH Transmitter 4-20mA RS485 Versatile Output

Brand Name:	JUGE
Model Number:	None
MOQ:	1 Unit
Price:	USD100-500
Packaging Details:	Neutral carton
Payment Terms:	Online order, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Name:

Online PH/ORP Controller

Difference:

See Details

Supply Ability:

100 Unit/Week

Highlight:

Versatile Output PH ORP Controller

PH ORP Controller RS485 Output

Versatile Output Online PH Transmitter

Product Description

Online Industry pH ORP Controller pH Transmitter

>>Overview
The Industrial Online pH/ORP Meter is a microprocessor-based water quality monitoring and control instrument. Configured with various types of pH or ORP electrodes, it is widely used in power plants, petrochemicals, metallurgy, electronics, mining, papermaking, bio-fermentation engineering, pharmaceuticals, food and beverage, environmental water treatment, aquaculture, modern agricultural cultivation, and other industries. It provides continuous monitoring and control of pH (acidity/alkalinity), ORP (oxidation-reduction potential), and temperature values in aqueous solutions.

>>Features‌
• ‌Dot-matrix LCD‌ display
• ‌Smart menu operation‌
• ‌Multiple automatic calibration functions‌
• ‌Versatile signal output options, 4-20mA, RS485

• ‌Data recording & curve display‌
• ‌Differential signal measurement mode‌ for stable and reliable performance
• ‌Manual/automatic temperature compensation‌
• ‌Relay control switches‌
• ‌High/low limits with hysteresis control‌
• ‌Simultaneous display‌ of main Parameter, temperature, and status on the same interface
• ‌Password protection‌ to prevent unauthorized operation

>>Technical Parameter

Controller Type	98*98cm black and white version	98*98cm colorful version	144*144cm black and white version	144*144cm colorful version
‌Measurement Range‌ (depends on electrode)	pH: -2.00 to 16.00 pH ORP: -2000 to +2000 mV Temperature: -10.0 to 150.0°C
Resolution‌	pH: 0.01 pH ORP: 1 mV Temperature: 0.1°C
‌Basic Error	pH: ±0.01 pH ORP: ±2 mV Temperature: ±0.3°C
Stability‌	pH: ≤0.02 pH/24h ORP: ≤2 mV/24h
‌Current Output‌	0/4-20 mA (load resistance <750 Ω) 20-4 mA (load resistance <750 Ω) (1 channel standard, 2 channels optional)		0/4-20 mA (load resistance <750 Ω) 20-4 mA (load resistance <750 Ω)
‌Communication Output‌	RS485 MODBUS RTU
‌Dual Relay Control Contacts‌	2Sets 3A 250V AC, 3A 30V DC		3Sets 5A 250V AC, 3A 30V DC
Power Supply‌ (optional)	85-265 VAC ±10%, 50±1 Hz, ≤3W 9-36 VDC, ≤3W
Historical Data	NO	NO	Yes	Yes
Data Trend Chart	NO	NO	NO	Yes
Dimensions‌	98 × 98 × 130 mm		144 × 144 × 118 mm
Installation‌	Panel-mounted or wall-mounted, Panel cutout: 92.5 × 92.5 mm		Panel-mounted or wall-mounted, Panel cutout: 137 × 137 mm
Protection Rating	IP65
Weight‌	0.6 kg		0.8 kg
Operating Environment	Temperature: -10 to 60°C Humidity: ≤90% RH No strong magnetic interference except Earth’s natural field
