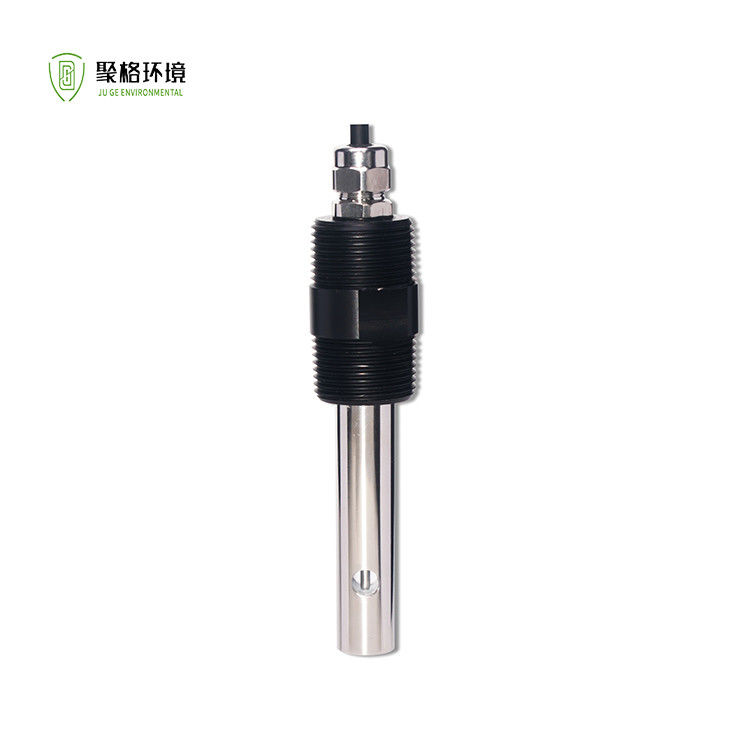

Lightweight 2 Poles Industrial Conductivity Sensor With 10m Cable

2-pole NPT3/4 Conductivity 5000μS/cm EC Sensor TDS Sensor

>>Technical Parameter‌‌

Conductivity Range: 0~5000μS/cm
Electrode Mode: 2-pole
Electrode Constant: K≈1
Wetted Material: 316L
Temperature Range: 0~60℃
Pressure Rating: 0~0.6MPa
Temperature Sensor: NTC10K/NTC2.2K/PT100/PT1000
Installation Interface: NPT3/4
Electrode Cable: Standard 10m

>>Principle

Since water contains various dissolved salts that exist in the form of ions, when electrodes are inserted into the water and an electric current is applied, the charged ions move in specific directions under the influence of the electric field. The anions in water migrate toward the anode, enabling the aqueous solution to conduct electricity. The ability of water to conduct electricity is termed ‌conductivity‌.

Conductivity is the reciprocal of resistivity and reflects the total dissolved salt content in water, serving as a critical indicator for assessing water quality. It reveals the concentration of electrolytes present in water. Depending on the concentration of electrolytes in an aqueous solution, the degree of electrical conduction varies. By measuring the conductivity of a solution, the solubility of electrolytes can be analyzed. This forms the fundamental analytical principle of conductivity meters.

Conductivity exhibits significant temperature dependence. For metals, conductivity decreases with rising temperatures, whereas for semiconductors, it increases with temperature. In solid semiconductors, doping levels can drastically alter conductivity—higher doping concentrations result in greater conductivity.

The conductivity of aqueous solutions depends on the concentration of dissolved salts or other chemical impurities that dissociate into electrolytes. The conductivity of a water sample serves as a key metric for measuring its salt content, ionic components, and impurity levels. Lower conductivity (higher resistivity) indicates purer water.

Water conductivity is often recorded as ‌specific conductance‌, which represents the conductivity of water at a standardized temperature of 25°C.

>>Installation Diagram

Before use, unscrew the electrode protective cap and install it with the appropriate mounting bracket or accessories.

‌1. Sidewall Installation‌: Ensure the interface tilt angle exceeds 15 degrees.

‌2. Top Flange Installation‌: Note flange dimensions and electrode insertion depth.

‌3. Pipe Installation‌: Consider pipe diameter, flow velocity, and pressure.

‌4. Flow-Through Installation‌: Monitor flow velocity and pressure.

‌5. Submersion Installation‌: Adjust bracket length as needed.
