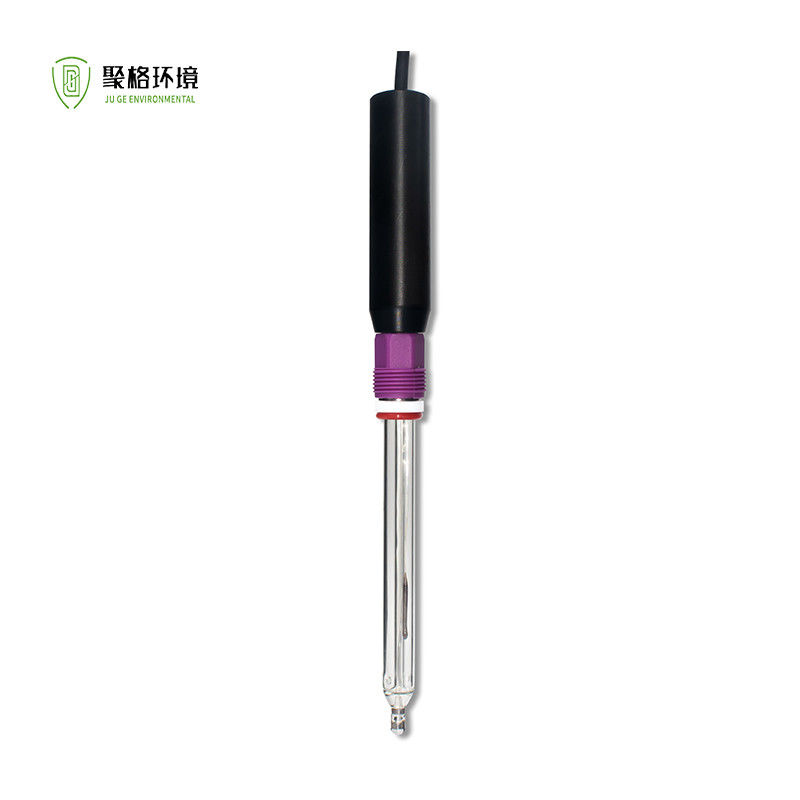

Digital Residual Chlorine Dissolved Ozone Chlorine Dioxide Sensor 9-36VDC

Digital Residual Chlorine Dissolved Ozone Chlorine Dioxide Sensor 9-36VDC

Brand Name: JUGE
Model Number: None
MOQ: 1 Unit
Price: USD300-600
Packaging Details: Neutral carton
Payment Terms: Online order,T/T
Detail Information
Place of Origin:
Nanjing, China
Certification:
IOS9001, CE
Power Supply:
9-36VDC
Output:
MODBUS RS-485
Range‌:
0–20.00 Mg/L
Material:
Body - Glass Shell; Cable - PVC
‌Ingress Protection‌:
IP68/NEMA 6P
Accuracy:
±1% F.S.
Pressure Range:
≤0.3MPa
Supply Ability:
100 Unit/Week
Highlight:

36VDC Chlorine Dioxide Sensor

,

Digital Chlorine Dioxide Sensor

,

residual chlorine sensor 36VDC

Product Description

Constant Voltage Digital Residual Chlorine Dissolved Ozone Chlorine Dioxide Sensor



>>Overview

The instrument consists of signal measurement, processing, display, and panel controls. By applying a specific negative voltage amplitude between the polarized electrode and reference electrode, this device selectively allows residual chlorine, chlorine dioxide, and ozone concentrations to participate in the reaction. These substances undergo electrochemical reactions at the cathode of the electrode, generating current signals proportional to their respective concentrations. Through collection and analysis of these current signals, the instrument calculates the concentrations of residual chlorine, chlorine dioxide, and ozone. Key features include:

High selectivity
No replacement parts required
Minimal maintenance
Long electrode lifespan
High reliability

This product is widely used in drinking water treatment plants, distribution networks, swimming pools, industrial wastewater systems, and cooling water circulation systems for continuous monitoring and control of residual chlorine, chlorine dioxide, and ozone levels in water.



>>Feature

▪ Digital sensor with RS-485 output, supports MODBUS
▪ Reagent-free operation, pollution-free, economical and environmentally friendly
▪ Constant voltage measurement with dual metal rings extends service life, accelerates response time, and ensures stable signals
▪ Electrode housing made of glass + POM material, withstands temperatures from 0 to 60°C
▪ High-quality dedicated four-core shielded cable ensures accurate and stable signal transmission



>>Technical Parameter

‌Model‌: AG5530D (Residual Chlorine), AG5560D (Chlorine Dioxide), AG6530D (Ozone) ‌

Power Supply‌: 9-36VDC ‌

Dimensions‌: Diameter 23mm × Length 240mm ‌

Weight‌: 0.4kg (including 10m cable) ‌

Material‌: Body - Glass shell; Cable - PVC ‌

Ingress Protection‌: IP68/NEMA 6P ‌

Measuring Range‌: 0-20mg/L ‌

Accuracy‌: ±1% F.S. ‌

Output‌: MODBUS RS-485

Storage Temperature‌: 0 to 45°C

Pressure Range‌: ≤0.3MPa ‌

Calibration‌: Slope calibration, zero-point calibration ‌

Cable Length‌: Standard 10m (extendable up to 100m)
