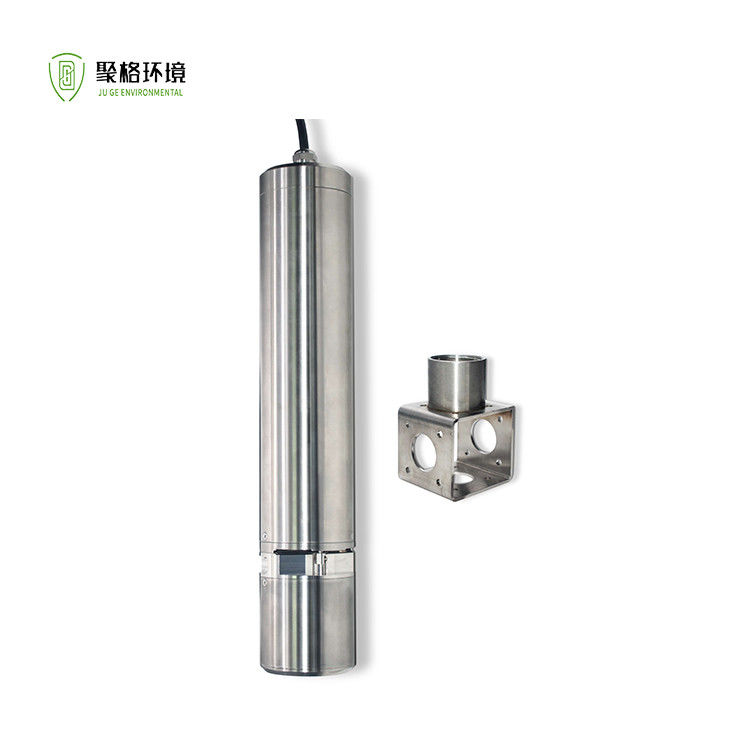

Digital Spectral Nitrate Nitrogen Sensor For Wastewater Aeration Tanks Denitrification Processes

Brand Name:	JUGE
Model Number:	AG6800D
MOQ:	1 Unit
Price:	USD300-2000
Packaging Details:	Neutral carton
Payment Terms:	Online order, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Range:

0.1～100.0 Mg/L (1mm), 0.1～50.0 Mg/L (2mm), 0.1～25.0 Mg/L (5mm)

Measurement Accuracy:

±5%

Minimum Detection Limit:

0.1 Mg/L

0.1 Mg/L:

0.1 Mg/L

Calibration:

Standard Solution Calibration

Power Supply:

12VDC

Communication Protocol:

MODBUS RS485

Supply Ability:

100 Unit/Week

Highlight:

Denitrification Processes nitrate nitrogen sensor

Digital Spectral Nitrate Nitrogen Sensor

Product Description

Digital Spectral Nitrate Nitrogen Sensor‌ For Wastewater Aeration Tanks Denitrification Processes

>>Overview

The digital nitrate nitrogen sensor probe enables direct immersion measurement, eliminating the need for sampling or pretreatment. It requires no chemical reagents, avoiding secondary pollution, and features a short response time for continuous monitoring. Equipped with an automatic cleaning function, it minimizes maintenance efforts. The sensor includes reverse polarity protection for the power supply and safeguards against incorrect power connections to the RS485 A/B terminals. It is ideal for continuous monitoring of dissolved nitrate concentrations in drinking water, surface water, industrial process water, and wastewater treatment systems, particularly for monitoring wastewater aeration tanks and controlling denitrification processes.

>>Feature

Direct immersion measurement without sampling or pretreatment.
Chemical reagent-free operation, preventing secondary pollution.
Short response time enables real-time, continuous monitoring.
Automatic cleaning function reduces maintenance requirements.
Reverse polarity protection for power supply.
RS485 A/B terminal power misconnection protection.

>>Applications

Continuous nitrate concentration monitoring in ‌drinking water, surface water, industrial process water, and wastewater treatment‌.
Ideal for ‌wastewater aeration tank monitoring‌ and ‌denitrification process control‌.

>>Advantages‌

‌Spectral analysis technology‌ ensures rapid response and stable signal output.
‌Stainless steel electrode housing‌ withstands temperatures from 0 to 45°C.
High-quality ‌quad-core shielded cable‌ enhances signal accuracy and stability, specifically designed for nitrate nitrogen sensors.

>>Technical Parameter‌‌

Measurement Range	0.1～100.0 mg/L (1mm) 0.1～50.0 mg/L (2mm) 0.1～25.0 mg/L (5mm)
Measurement Accuracy	±5%
Minimum Detection Limit	0.1 mg/L
Resolution	0.1 mg/L
Calibration	Standard solution calibration
Power Supply	DC: 12VDC
Communication Protocol	MODBUS RS485
Operating Temperature	0 to 45℃
Dimensions	Sensor: Diameter 69mm × Length 380mm
Weight	Sensor: 3.2 kg
Protection Rating	Sensor: IP68/NEMA 6P
Cable Length	Standard 10-meter cable, extendable
