Digital Water Quality Blue Green Algae Sensor RS485 MODBUS Output

Brand Name:	JUGE
Model Number:	AG6401YD
MOQ:	1 Unit
Price:	USD300-2000
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Power Supply:

12VDC

Output:

RS485 MODBUS

Range:

0-200,000 Cells/mL

Housing Material:

SUS316L

Pressure Range:

≤0.4 MPa

Temperature Range:

0-50°C

Supply Ability:

100 Unit/Week

Highlight:

RS485 MODBUS Blue Green Algae Sensor

Water Quality Blue Green Algae Sensor

RS485 MODBUS Water Quality Sensor

Product Description

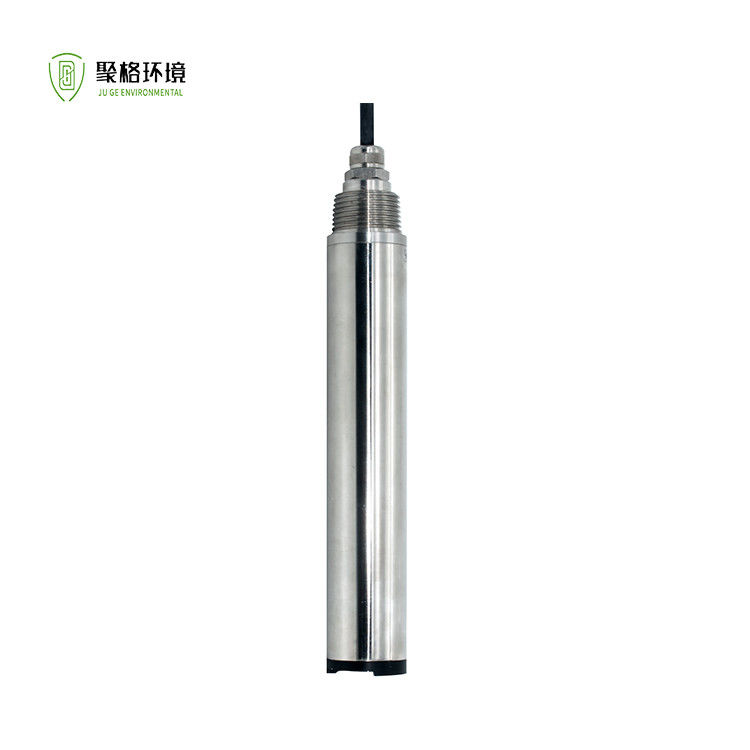

Digital Water Quality Blue-Green Algae Sensor

>>Overview

The Blue-Green Algae Sensor utilizes the characteristic absorption and emission peaks of cyanobacteria in the spectrum. It emits specific wavelengths of monochromatic light into water, which is absorbed by cyanobacteria. The cyanobacteria then release another wavelength of monochromatic light, and the intensity of this emitted light is proportional to the concentration of cyanobacteria in the water.

Applications Include:

Microalgae Monitoring: Quantifying microalgae populations in marine bays and harbors
Freshwater Analysis: Detecting green algae and cyanobacteria in rivers, lakes, and reservoirs
Aquaculture Management: Monitoring red algae levels in mariculture facilities
Cultivation Control: Measuring green algae concentrations in bioreactor processing systems

>>Feature

Fluorescence-based pigment measurement to identify potential water blooms before impacts occur.
Rapid detection without extraction or additional processing, avoiding issues caused by stagnant water samples.
Digital sensor with strong anti-interference capabilities and long-distance signal transmission.
Standard digital signal output (RS485 Modbus RTU) enables integration and networking with other devices without a controller.
Easy on-site installation and plug-and-play operation.
Employs a light source method for fast response and stable signals.
Stainless steel electrode housing withstands temperatures from 0 to 45°C.
Specialized four-core shielded cable for blue-Green Algae Sensor ensures accurate and stable signal transmission.

>>Technical Parameter‌‌

Measurement Range: 0—200,000 cells/mL

Measurement Accuracy: ±5% of the signal level corresponding to 1ppb Rhodamine WT dye

Pressure Range: ≤0.4 MPa

Calibration: Offset Calibration, Slope Calibration

Requirements: Blue-green algae in water are highly unevenly distributed; multi-point monitoring is recommended. Water turbidity should be below 50 NTU.

Sensor Main Materials: Body: SUS316L + PVC; O-ring: Fluor rubber; Cable: PVC

Storage Temperature: -15 to 65°C

Operating Temperature: 0 to 45°C

Dimensions: Diameter 37mm × Length 220mm

Weight: 0.8 kg

Protection Rating: IP68/NEMA 6P

Cable Length: Standard 10m cable, extendable up to 100m
