Online Conductivity TDS Salinity Controller Water Quality Monitor 4-20mA RS485 Transmitter

Brand Name:	JUGE
Model Number:	None
MOQ:	1 Unit
Price:	USD100-500
Packaging Details:	Neutral carton
Payment Terms:	Online order, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Name:

Online Conductivity/TDS/Salinity Controller

Difference:

See Details

Supply Ability:

100 Unit/Week

Highlight:

Online Conductivity TDS Salinity Controller

Water Quality Monitor 4-20mA

RS485 Salinity Controller

Product Description

Online Conductivity TDS Salinity Controller Water Quality Monitor 4-20mA RS485 Transmitter

>>Overview

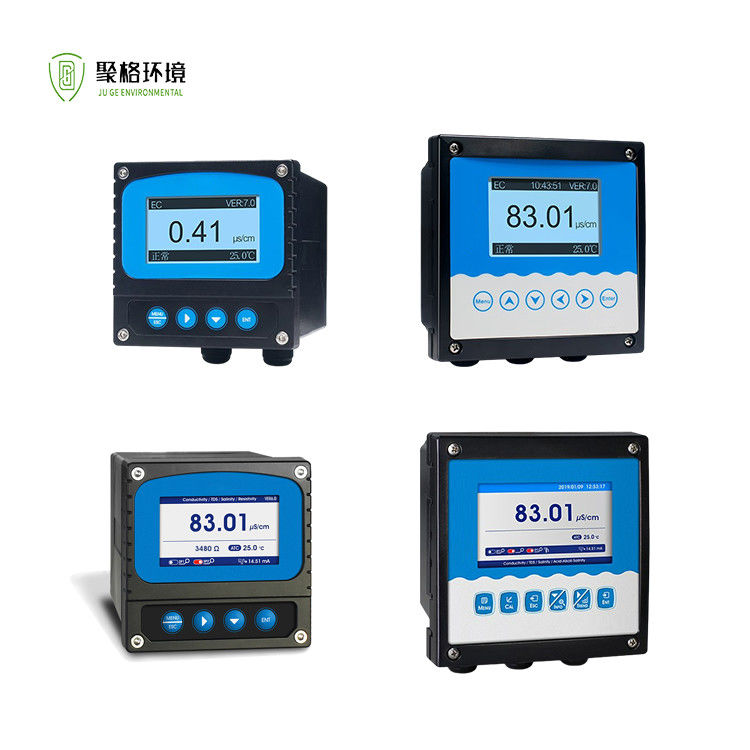

The industrial online conductivity meter is a microprocessor-based water quality online monitoring and control instrument. This device is widely used across various industries including power plants, petrochemicals, metallurgy and electronics, mining, paper manufacturing, semiconductors, pharmaceuticals, food and beverage production, environmental water treatment, and modern agricultural cultivation. It is suitable for applications such as softened water, raw water, steam condensate, distilled seawater, and deionized water systems. The instrument enables continuous monitoring and control of key parameters including conductivity, resistivity, TDS (Total Dissolved Solids), salinity, and temperature in aqueous solutions.

>>Features‌
• ‌Dot-matrix LCD‌ display
• ‌Smart menu operation‌
• ‌Multiple automatic calibration functions‌
• ‌Versatile signal output options, 4-20mA, RS485

• ‌Data recording & curve display‌
• ‌Differential signal measurement mode‌ for stable and reliable performance
• ‌Manual/automatic temperature compensation‌
• ‌Relay control switches‌
• ‌High/low limits with hysteresis control‌
• ‌Simultaneous display‌ of main Parameter, temperature, and status on the same interface
• ‌Password protection‌ to prevent unauthorized operation

>>Technical Parameter

Controller Type	98*98cm black and white version	98*98cm colorful version	144*144cm black and white version	144*144cm colorful version
‌Measurement Range‌ (depends on electrode)	Conductivity: 0-500mS/cm; TDS:0～250g/L; Salinity: 0-700PPT; 0～70%; 0～700g/L； Temperature: -10~150.0 °C;
Resolution‌	Conductivity: 0.01 μ S/cm; 0.01mS/cm; TDS:0.01mg/L； 0.01g/L; Salinity: 0.01PPT; 0.1%； 0.01mg/L; Temperature: 0.1 °C;
‌Basic Error	±1%F.S Temperature: ±0.3°C
Stability‌	±0.2%F.S/24h
‌Current Output‌	0/4-20 mA (load resistance <750 Ω) 20-4 mA (load resistance <750 Ω) (1 channel standard, 2 channels optional)		0/4-20 mA (load resistance <750 Ω) 20-4 mA (load resistance <750 Ω)
‌Communication Output‌	RS485 MODBUS RTU
‌Dual Relay Control Contacts‌	2Sets 3A 250V AC, 3A 30V DC		3Sets 5A 250V AC, 3A 30V DC
Power Supply‌ (optional)	85-265 VAC ±10%, 50±1 Hz, ≤3W 9-36 VDC, ≤3W
Historical Data	NO	NO	Yes	Yes
Data Trend Chart	NO	NO	NO	Yes
Dimensions‌	98 × 98 × 130 mm		144 × 144 × 118 mm
Installation‌	Panel-mounted or wall-mounted, Panel cutout: 92.5 × 92.5 mm		Panel-mounted or wall-mounted, Panel cutout: 137 × 137 mm
Protection Rating	IP65
Weight‌	0.6 kg		0.8 kg
Operating Environment	Temperature: -10 to 60°C Humidity: ≤90% RH No strong magnetic interference except Earth’s natural field
