Online Industry Turbidity Controller For Water Treatment Plants Drinking Water

Brand Name:	JUGE
Model Number:	None
MOQ:	1 Unit
Price:	USD100-500
Packaging Details:	Neutral carton
Payment Terms:	Online order, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Name:

Online Turbidity Controller

Difference:

See Details

Supply Ability:

100 Unit/Week

Highlight:

Online Industry Turbidity Controller

Water Treatment Plants Turbidity Controller

Product Description

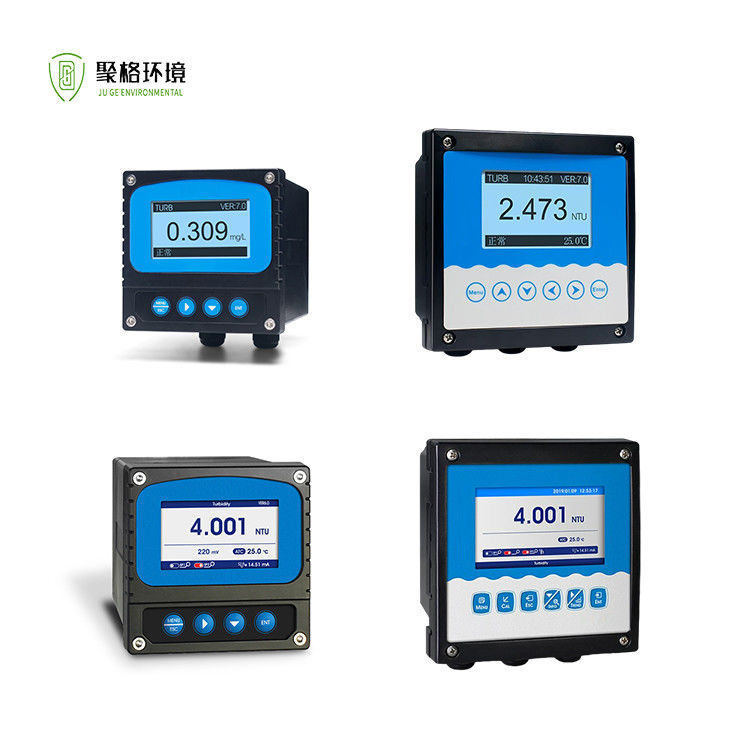

Online Industry Turbidity Controller for Water Treatment Plants Drinking Water

>>Overview
Turbidity monitoring of finished water from water treatment plants; water quality monitoring in municipal pipe networks; water quality monitoring in industrial processes, including circulating cooling water, activated carbon filter effluent, membrane filtration effluent, etc.

>>Features‌
• ‌Dot-matrix LCD‌ display
• ‌Smart menu operation‌
• ‌Multiple automatic calibration functions‌
• ‌Versatile signal output options, 4-20mA, RS485

• ‌Data recording & curve display‌
• ‌Differential signal measurement mode‌ for stable and reliable performance
• ‌Manual/automatic temperature compensation‌
• ‌Relay control switches‌
• ‌High/low limits with hysteresis control‌
• ‌Simultaneous display‌ of main Parameter, temperature, and status on the same interface
• ‌Password protection‌ to prevent unauthorized operation

>>Technical Parameter

Controller Type	98*98cm black and white version	98*98cm colorful version	144*144cm black and white version	144*144cm colorful version
‌Measurement Range‌ (depends on electrode)	0.001～9999NTU
Resolution‌	0.001/0.01/0.1/1NTU
Unit	NTU, mg/L
‌Current Output‌	0/4-20 mA (load resistance <750 Ω) 20-4 mA (load resistance <750 Ω) (1 channel standard, 2 channels optional)		0/4-20 mA (load resistance <750 Ω) 20-4 mA (load resistance <750 Ω)
‌Communication Output‌	RS485 MODBUS RTU
‌Dual Relay Control Contacts‌	2Sets 3A 250V AC, 3A 30V DC		3Sets 5A 250V AC, 3A 30V DC
Power Supply‌ (optional)	85-265 VAC ±10%, 50±1 Hz, ≤3W 9-36 VDC, ≤3W
Historical Data	NO	NO	Yes	Yes
Data Trend Chart	NO	NO	NO	Yes
Dimensions‌	98 × 98 × 130 mm		144 × 144 × 118 mm
Installation‌	Panel-mounted or wall-mounted, Panel cutout: 92.5 × 92.5 mm		Panel-mounted or wall-mounted, Panel cutout: 137 × 137 mm
Protection Rating	IP65
Weight‌	0.6 kg		0.8 kg
Operating Environment	Temperature: -10 to 60°C Humidity: ≤90% RH No strong magnetic interference except Earth’s natural field
