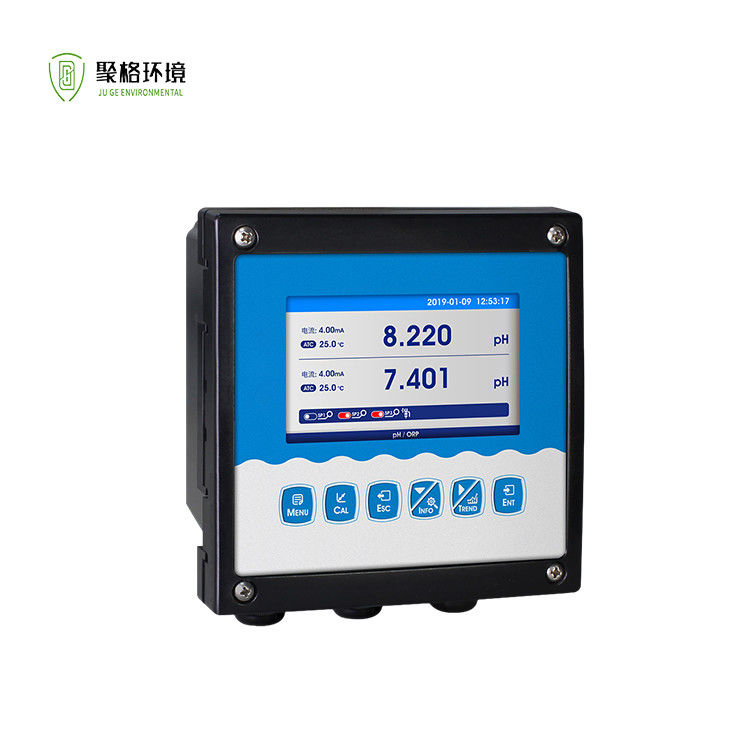

Online Dual Channel Multi Parameter Water Quality Controller IP65

Brand Name: JUGE
Model Number: None
MOQ: 1 Unit
Price: USD1000-5000
Packaging Details: Neutral carton
Payment Terms: Online order,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Nanjing, China
Certification:
IOS9001, CE
Name:
Online Dual Channel Controller
Difference:
See Details
‌Current Output‌:
0/4-20 MA (load Resistance <750 Ω)
Dimensions‌:
144 × 144 × 118 Mm
Protection Rating:
IP65
Weight‌:
0.8 Kg
Supply Ability:
100 Unit/Week
Highlight:

Multi parameter Water Quality Controller

,

Dual Channel Water Quality Controller

,

IP65 water quality monitor

Product Description

Online Dual Channel Multi-parameter Water Quality Controller



>>Overview
Accept any 2 Types Digital Sensor or Common analog Electrode.



>>Features‌

▪ Large-screen color LCD display
▪ Intelligent menu operation
▪ Data recording & curve display
▪ Manual or automatic temperature compensation
▪ Three sets of relay control switches
▪ High limit, low limit, and hysteresis control
▪ 4-20mA & RS485 multiple output modes
▪ Input value, temperature, current value, etc. displayed on the same interface
▪ Password protection to prevent unauthorized operation by non-staff



>>Technical Parameter

Input Signal

2-channel Digital sensors (according to configuration)
‌Current Output‌

0/4-20 mA (load resistance <750 Ω)
‌Communication Output‌ RS485 MODBUS RTU

‌Dual Relay Control Contacts‌

3Sets

5A 250V AC, 5A 30V DC
Power Supply‌ (optional)

85-265 VAC ±10%, 50±1 Hz, ≤3W

9-36 VDC, ≤3W
Historical Data

YES
Data Trend Chart

YES
Dimensions‌ 144 × 144 × 118 mm
Installation‌ Panel-mounted or wall-mounted, Panel cutout: 137 × 137 mm
Protection Rating IP65
Weight‌ 0.8 kg

Operating Environment

Temperature: -10 to 60°C

Humidity: ≤90% RH

No strong magnetic interference except Earth’s natural field
