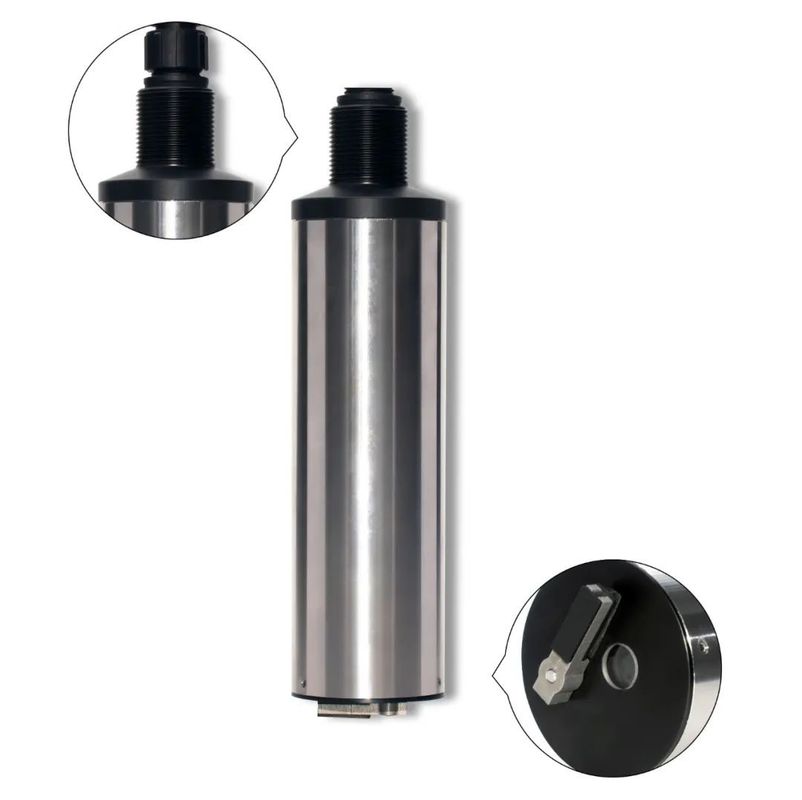

Digital RS485 4000NTU 135° Infrared Water Turbidity Sensor Self Cleaning

Brand Name:	JUGE
Model Number:	AG7835D
MOQ:	1 Unit
Price:	USD300-2000
Packaging Details:	Neutral carton
Payment Terms:	Online order, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Power Supply:

9~36VDC

Output:

RS485 MODBUS

Range:

0.01—4000 NTU

Accuracy:

±5%

Pressure Range:

≤0.2Mpa

Housing Material:

POM+316L

Supply Ability:

100 Unit/Week

Highlight:

4000NTU Water Turbidity Sensor

Water Turbidity Sensor Self Cleaning

digital turbidity sensor 4000NTU

Product Description

Self cleaning Digital RS485 4000NTU 135° infrared Turbidity Sensor

>>Overview

The sensor features a robust structure, making it suitable for various environments. Equipped with a built-in automatic wiper cleaning system, it requires minimal maintenance and is virtually maintenance-free. Utilizing a 135° infrared beam, it demonstrates strong anti-interference capability and high stability. With an IP68 protection rating, the sensor can be directly immersed in water for measurements. Application areas include municipal sewage treatment, reclaimed water systems, and industrial wastewater processing.

>>Feature

▪ Utilizes 135° infrared technology for ‌fast response time‌ and ‌stable signal‌.
▪ ‌Digital sensor‌ with RS-485 output, ‌supports MODBUS protocol‌.
▪ ‌Reagent-free operation‌, pollution-free, and ‌more economical and environmentally friendly‌.
▪ Employs ‌ultrasonic measurement method‌ to ensure ‌fast response time‌ and ‌stable signal‌.
▪ Electrode housing made of ‌POM + 316 stainless steel‌, with ‌temperature resistance of 0–45°C‌.
▪ Uses ‌sensor-specific high-quality four-core shielded cable‌ for ‌enhanced signal accuracy and stability‌.

>>Technical Parameter‌‌

Model	AG7835D
Power supply	9~36VDC/RS485 MODBUS RTU
Measurement method	135° infrared
Dimension	φ50mm*210mm
Housing Material	POM+316L
Waterproof Level	IP68
Range	0.01—4000 NTU
Measurement limit	0.5NTU
Accuracy	±5%
Auto-cleaning	Yes, mechanical cleaning/scraping
Pressure Range	≤0.2Mpa
Temperature Range	0-45℃
Calibration	Standard solution, water sample
Cable	Standard 10 meters, extendable to 100 meter
Installation thread	G3/4
