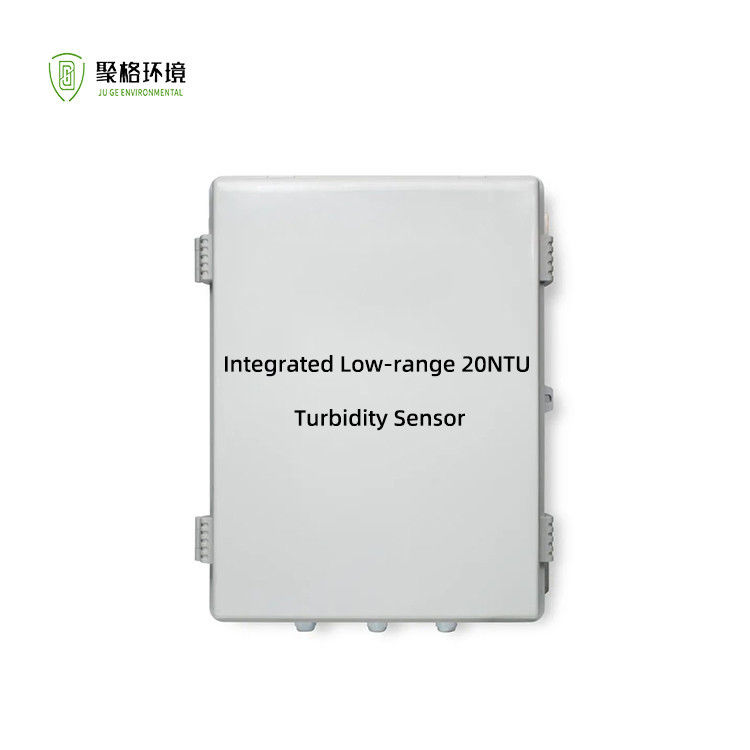

Integrated Flow Through Water Turbidity Sensor Low Range 20NTU

Brand Name:	JUGE
Model Number:	AG7805DL
MOQ:	1 Unit
Price:	USD300-2000
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Power Supply:

9~36VDC

Output:

RS485 MODBUS

Range:

0.001-20.00NTU

Accuracy:

±2%

Pressure Range:

≤0.2Mpa

Type:

Integrated Flow Through

Supply Ability:

100 Unit/Week

Highlight:

Integrated Flow Through Turbidity Sensor

20NTU Water Turbidity Sensor

20NTU optical turbidity sensor

Product Description

Low Range 20NTU Integrated Flow through Turbidity Sensor

>>Overview

The turbidity sensor operates based on infrared scattering light technology. When infrared light emitted by the light source passes through the sample under test during transmission, scattering occurs. The intensity of this scattered light is directly proportional to the turbidity level. The sensor is equipped with a scattered light receiver positioned at a 90-degree angle to detect scattered light. By analyzing the intensity of this scattered light, the turbidity value is determined. Applications include municipal pipeline water quality monitoring, circulating cooling water systems, effluent from activated carbon filters, membrane filtration effluent, water treatment plant effluent, secondary water supply systems, and more.

Integrated Flow Through Water Turbidity Sensor Low Range 20NTU 0

>>Feature

▪ Built-in bubble elimination system, prevents interference with measurements
▪ Simple and straightforward cleaning/maintenance with long calibration intervals
▪ Excellent reproducibility, unaffected by sample flow rate or pressure
▪ Long light source lifespan with minimal attenuation
▪ Digital signal output ensures stable, interference-free transmission

>>Technical Parameter‌‌

Model	AG7805DL
Power supply	9~36VDC/RS485 MODBUS RTU
Measurement method	90° infrared
Dimension	400300170mm
Weight	5.4kg
Housing Material	ABS
Waterproof Level	IP65
Range	0.001-20.00NTU
Accuracy	±2%
Pressure Range	≤0.2Mpa
Water Sample Flow	200-400mL/min
Working Temperature	0-45℃
Calibration	Standard solution, water sample
Cable	Standard 10 meters, extendable to 100 meter
Installation Type	Flow through, wall-mounted
