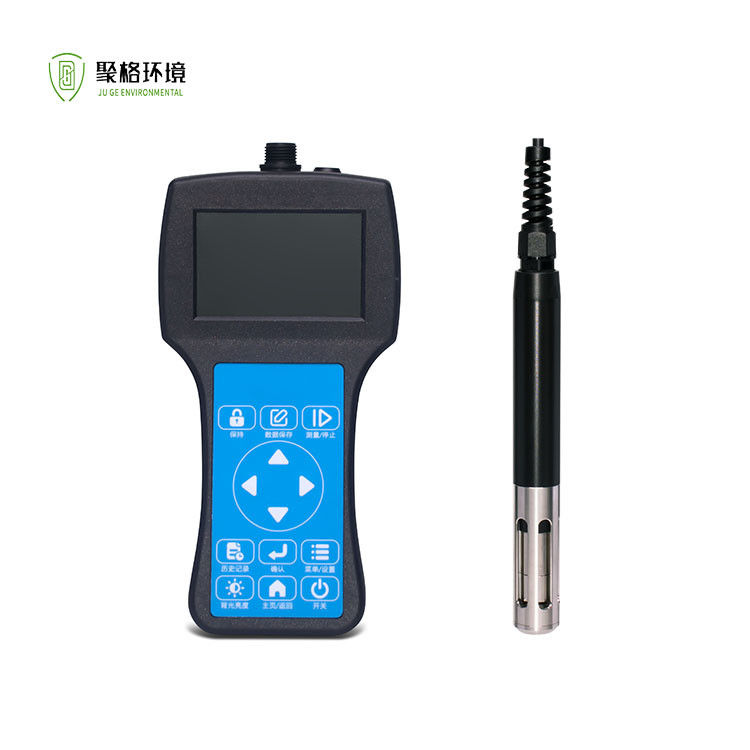

Portable Optical Dissolved Oxygen Meter DO Water Quality Analyzer IP66 Dustproof

Portable Handheld Optical Dissolved Oxygen DO Water Quality Analyzer

>>Overview
The portable analyzer consists of a portable instrument and sensors, requiring minimal maintenance while delivering excellent repeatability and stability in measurement results. Featuring IP66 protection rating and an ergonomic curved design, it offers comfortable handheld operation with secure grip even in humid environments. Factory-calibrated for immediate use, it requires no recalibration for one year and supports field calibration when needed. Equipped with digital sensors, it enables convenient and efficient on-site operation through plug-and-play compatibility with the instrument.

The Type-C interface allows for charging the built-in battery and facilitates data export. This analyzer is widely applied for on-site portable monitoring across various industries including aquaculture, wastewater treatment, surface water analysis, industrial/agricultural water supply and drainage, domestic water systems, boiler water quality control, as well as scientific research and academic institutions.

>>Features

▪ New design for comfortable grip, lightweight portability, and simple operation.
▪ 65x40mm extra-large LCD backlit display.
▪ IP66 dustproof and waterproof rating with ergonomic curved design.
▪ Factory-calibrated, no recalibration needed for one year; supports on-site calibration.
▪ Digital sensors enable quick, plug-and-play compatibility with the instrument for efficient field use.
▪ Type-C interface for charging the built-in battery and data transfer.

>>Technical Parameter

‌Measurement Range:‌ 0–20 mg/L, 0–200%

‌Measurement Accuracy:‌ ±1% F.S.

‌Resolution:‌ 0.01 mg/L, 0.1%

‌Calibration:‌ Sample calibration.

‌Housing Material:‌

Sensor: SUS316L + POM

Main Unit: ABS + PC

‌Storage Temperature:‌ -15°C to 40°C

‌Operating Temperature:‌ 0°C to 50°C

‌Sensor:‌

Dimensions: Diameter 22 mm × Length 221 mm

Weight: 0.35 KG

‌Main Unit Dimensions:‌ 235 × 118 × 80 mm

Weight: 0.55 KG

‌Protection Rating:‌

Sensor: IP68

Main Unit: IP67

‌Cable Length:‌ Standard 5 meters (extendable).

‌Display:‌ 3.5-inch color screen with adjustable backlight.

‌Data Storage:‌ 16 MB storage capacity (approx. 360,000 datasets).

‌Power Supply:‌ Built-in 10,000 mAh lithium battery.

‌Charging & Data Export:‌ Type-C interface.

>>Dimension
