All Category

Multiparameter Water Quality Monitoring

24V Industrial Temperature And Humidity Transmitter High Accuracy

Brand Name:	JUGE
Model Number:	None
MOQ:	1 Unit
Price:	USD100-1000
Packaging Details:	Neutral carton
Payment Terms:	Online order, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Name:

Temperature And Humidity Transmitter

Measurement Range:

Temperature: (-40 To 80)°C; Humidity: (0 To 100)%RH

Accuracy:

Temperature: ≤ ±1°C; Humidity: ≤ 2%RH

Display Type:

Digital Tube, LED Display

Operation Mode:

Infrared Remote Control

Input Voltage:

24V

Dimensions:

162mm(L) × 142mm(W) × 92mm(H)

Supply Ability:

100 Unit/Week

Highlight:

24V Temperature and Humidity Transmitter

Temperature and Humidity Transmitter high Accuracy

High Accuracy temperature & humidity transmitter

Product Description

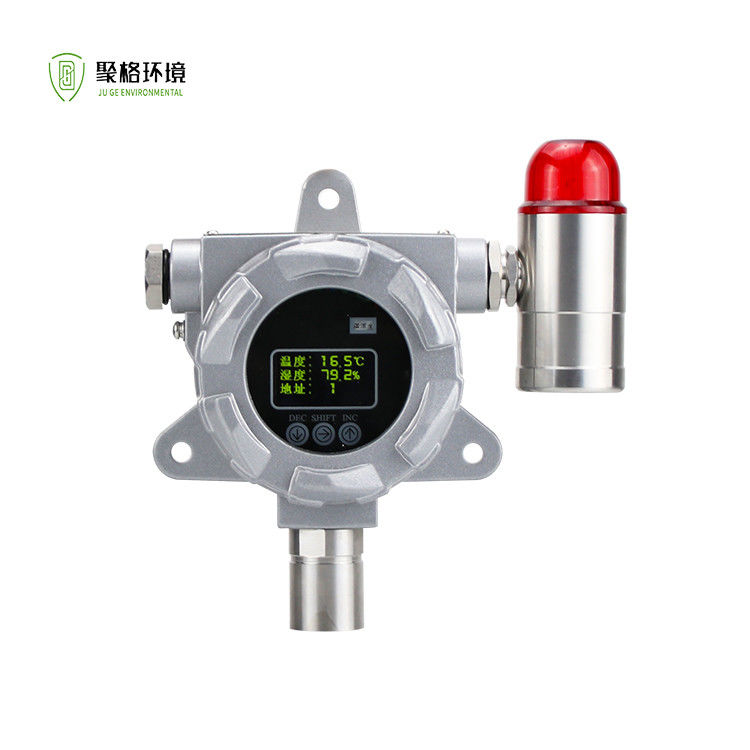

Industrial Temperature and Humidity Transmitter

>>Overview

Featuring an OLED display, this device simultaneously measures ambient temperature and humidity, presenting data digitally. Its modular design allows easy replacement of the motherboard module and sensor module for simplified maintenance. Supports dual-channel 4-20mA and RS485 outputs for simultaneous analog transmission of temperature and humidity signals. The detector includes two relay outputs (passive and active) for seamless integration with alarms, fans, and other external devices. Units are displayed in ℃ and %RH, with control via infrared remote. Features power, fault, and alarm indicators. Equipped with a robust triple waterproof design, it is suitable for harsh environments such as underground utility tunnels, building automation, HVAC climate monitoring, warehouses, medical facilities, ventilation ducts, greenhouses, and other applications requiring precise air temperature/humidity measurement and control.

Applications‌
Ideal for underground pipelines, HVAC systems, smart buildings, agriculture, pharmaceuticals, logistics, and industrial ventilation where precise environmental monitoring is critical.

>>Features

◆ ‌Power Supply‌: 24V ±5%, power consumption <2.5W.
◆ ‌Display‌: High-brightness LED/digital tube display with long lifespan, low power consumption, and clear visibility across lighting conditions. Shows concentration, units, alarms, and fault status.
◆ ‌Processor‌: Embedded ST 64-bit high-performance, low-power microcontroller for rapid signal processing and real-time data display.
◆ ‌Sensor‌: Original imported sensor ensures stability and accuracy.
◆ ‌Alarm Compatibility‌: Supports optional audible/visual alarms for operational and alert notifications.
◆ ‌Communication Options‌: 4-20mA or RS485 signal output.
◆ ‌Remote Control‌: Infrared remote for easy configuration.
◆ ‌Waterproof Design‌: Triple waterproof protection for reliable operation in humid environments like utility tunnels.
◆ ‌Modularity‌: Easy module replacement and maintenance.
◆ ‌Certification‌: Explosion-proof certified (Exd IIC T6) by the National Explosion Protection Center.

>>Main technical parameters

Measuring Range	Temperature: (-40 to 80)°C; Humidity: (0 to 100)%RH
Accuracy	Temperature: ≤ ±1°C; Humidity: ≤ 2%RH
Display Type	Digital tube, LED display
Operation Mode	Infrared remote control
Input Voltage	24V
Power Consumption	<2.5W
Signal Output	RS485 bus signal; 4-20mA output
Communication Frequency‌	9600bps (RS485 mode)
‌Relay Output‌	Passive output (1 set), Active output (1 set) (simultaneous control)
Warm-up Time	10s
‌Response Time‌	T90 ≤30s
‌Recovery Time	≤20s
‌Operating Pressure	86-106 kPa
Protection Rating‌	IP66
‌Material‌	Precision-cast aluminum alloy, surface coating
Installation‌	Wall-mounted (customizable mounting bracket available)
Dimensions	162mm(L) × 142mm(W) × 92mm(H)
Weight	Approx. 1.26 kg
