Flow Through Thread Drinking Water Turbidity Sensor 100NTU IP65 Waterproof

Brand Name:	JUGE
Model Number:	AG7802DL
MOQ:	1 Unit
Price:	USD300-2000
Packaging Details:	Neutral carton
Payment Terms:	Online order, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Power Supply:

12VDC

Output:

RS485 MODBUS

Range:

0.001-100.00NTU

Measurement Accuracy:

0 – 40 NTU, ±2%；40 – 100 NTU，±5%

Flow Velocity:

300ml/min≤X≤500ml/min

Thread:

Flow-through

Supply Ability:

100 Unit/Week

Highlight:

IP65 Water Turbidity Sensor

Water Turbidity Sensor 100NTU

IP65 optical turbidity sensor

Product Description

Digital Integrated Low-range 100NTU Turbidity Sensor For Drinking Water

>>Overview

The turbidity sensor is based on the infrared scattering light technology, that is, the infrared light emitted by the light source will scatter through the measured sample during the transmission process, and the intensity of the scattered light is directly proportional to the turbidity. The turbidity sensor sets the scattered light receiver in the 90° direction, and obtains the turbidity value by analyzing the intensity of this set of scattered light. It can be widely used in turbidity monitoring in sewage water plant, water plant, water station, surface water, industry and other fields.

>>Technical Parameter‌‌

Power/Outlet	9~36VDC/RS485 MODBUS RTU
Measurement mode	90°IR scattered light method
Dimensions	1108080mm
Waterproof rating	IP65
Measurement range	0.001-100.00NTU
Measurement accuracy	0 – 40 NTU, ±2%；40 – 100 NTU,±5%
Pressure resistance	≤0.2Mpa
Flow velocity	300ml/min≤X≤500ml/min
Measuring temperature	0-45℃
Calibration	Standard liquid calibration, water sample calibration
Cable length	Standard 1m,can be extended
Thread	Flow-through

>>Dimension And Installation

Install the sensor in place to ensure representative measurements. Install the sensor in an easily accessible position to facilitate regular cleaning and maintenance of the sensor. Install the sensor near a representative, good sampling site:

Inlet water pipe, outlet water pipe, cleaning drainage pipe users self-allocation, caliber for PE 3 in charge;
It is recommended to add pressure reducing valve and valve to control the front end of water inlet pipe.

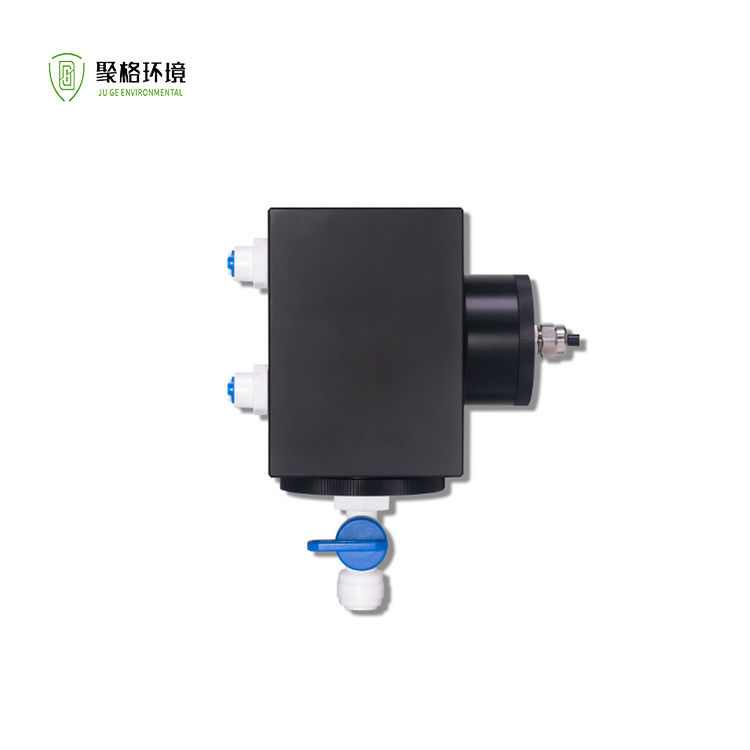

Flow Through Thread Drinking Water Turbidity Sensor 100NTU IP65 Waterproof 0
