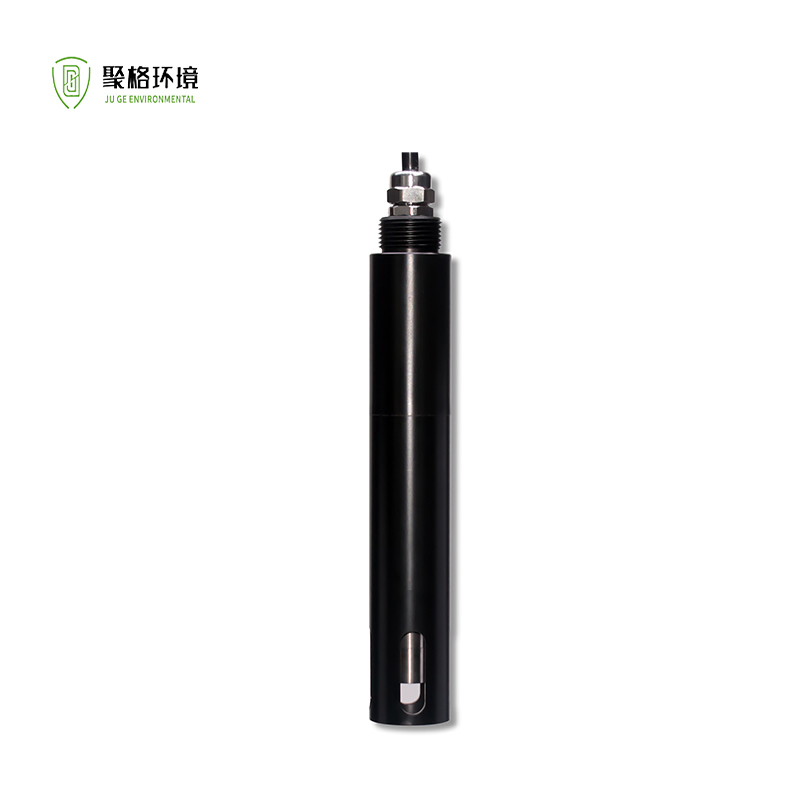

Economic RS485 Digital Optical Fluorescence Dissolved Oxygen Sensor DO Probe

Brand Name:	JUGE
Model Number:	AG4764D
MOQ:	1 Unit
Price:	USD300-600
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Power Supply:

12-28VDC

Output:

RS485 MODBUS RTU

‌Measurement Method‌:

Fluorescence Method

‌Housing Material‌:

POM + 304 Stainless Steel

Range:

0-20mg/L, 0-200%

Accuracy:

±1%F.S

‌Pressure Range:

≤0.1Mpa

‌Temperature Range:

0-50℃

Supply Ability:

100 Unit/Week

Highlight:

RS485 Digital Optical Dissolved Oxygen Probe

RS485 Dissolved Oxygen Probe

Product Description

Digital Optical Fluorescence Water Dissolved Oxygen Sensor DO RS485 sensor

>>Technical Parameter

The dissolved oxygen sensor employs the fluorescent method to measure dissolved oxygen. It emits blue light that illuminates the fluorescent layer, exciting the fluorescent material to emit red light. The oxygen concentration is inversely proportional to the time it takes for the fluorescent material to return to its ground state. This measurement method eliminates oxygen consumption during operation, ensures stable and reliable data output, avoids interference, and features simple installation and calibration.

The product is widely used for dissolved oxygen monitoring in wastewater treatment plants, water supply facilities, monitoring stations, surface water systems, aquaculture operations, industrial applications, and other related fields.

>>Technical Parameter

Power Supply: 12-28VDC

Signal Output: RS485 MODBUS RTU

Measurement Method: Luminescence Method

Housing Material: POM + 304

Waterproof Rating: IP68

Measuring Range: 0-20mg/L, 0-200%

Accuracy: ±1% F.S.

Pressure Range: ≤0.1MPa

Temperature Range: 0-50°C

Calibration: Anoxic water calibration, air calibration

Connection: 4-core cable

Cable Length: 10 meters standard (extendable)

Installation Thread: G3/4"

Applications: General applications: rivers, lakes, drinking water, environmental monitoring, etc.

>>Size
