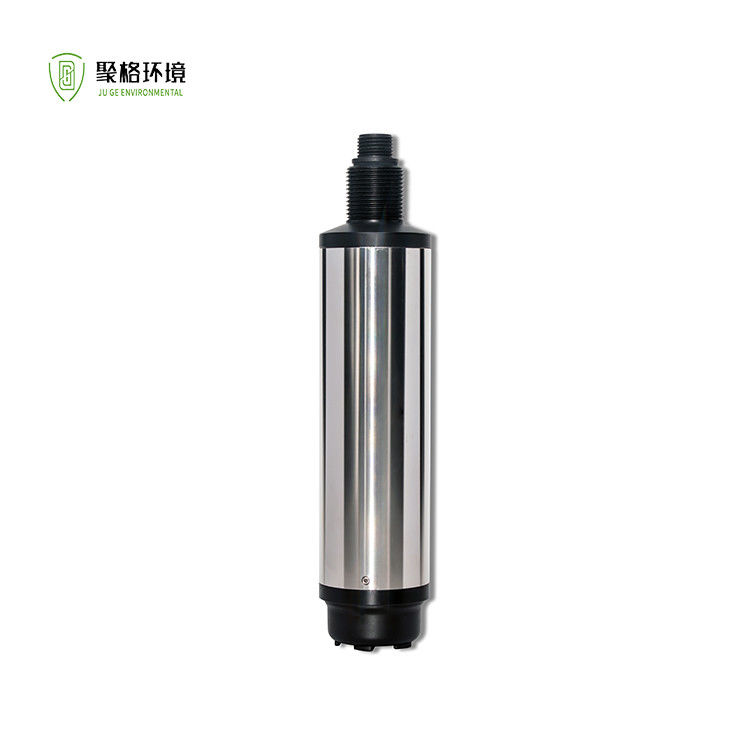

Digital Optical Fluorescence Water Dissolved Oxygen Sensor DO RS485 sensor

Brand Name:	JUGE
Model Number:	AG4760CD
MOQ:	1 Unit
Price:	USD300-600
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Power Supply:

9-36VDC

Output:

RS485 MODBUS RTU

‌Measurement Method‌:

Fluorescence Method

‌Housing Material‌:

POM + 316 Stainless Steel

Range:

0-20mg/L, 0-200%

Accuracy:

±1%F.S

‌Pressure Range:

≤0.1Mpa

‌Temperature Range:

0-50℃

Supply Ability:

100 Unit/Week

Highlight:

Optical Fluorescence Water Dissolved Oxygen Sensor

Optical Fluorescence Dissolved Oxygen Electrode

36VDC Water Dissolved Oxygen Sensor

Product Description

Digital Optical Fluorescence Water Dissolved Oxygen Sensor DO RS485 sensor

>>Technical Parameter

The dissolved oxygen sensor employs the fluorescent method to measure dissolved oxygen. It emits blue light that illuminates the fluorescent layer, exciting the fluorescent material to emit red light. The oxygen concentration is inversely proportional to the time it takes for the fluorescent material to return to its ground state. This measurement method eliminates oxygen consumption during operation, ensures stable and reliable data output, avoids interference, and features simple installation and calibration.

The product is widely used for dissolved oxygen monitoring in wastewater treatment plants, water supply facilities, monitoring stations, surface water systems, aquaculture operations, industrial applications, and other related fields.

>>Features

• Digital sensor with RS-485 output and MODBUS protocol support
• Reagent-free operation, pollution-free design, cost-effective and eco-friendly
• Fluorescent measurement method with externally mounted temperature sensor (accelerated response time and stable signal)
• Electrode housing constructed with POM + 316 stainless steel (withstands 0-50°C environments)
• Specialized quad-core shielded cable ensures enhanced signal accuracy and stability
• Detachable cable design facilitates easy installation

>>Technical Parameter

‌Power Supply‌	9-36VDC
‌Signal Output‌	RS485 MODBUS RTU
‌Measurement Method‌	Fluorescence Method
‌Housing Material‌	POM + 316 Stainless Steel
‌Waterproof Rating‌	IP68
‌Measurement Range‌	0-20mg/L, 0-200%
‌Accuracy‌	±1%F.S
‌Pressure Range‌	≤0.1Mpa
‌Temperature Compensation‌	NTC10K
‌Temperature Range‌	0-50℃
‌Calibration‌	Zero Oxygen Water Calibration, Air Calibration
‌Connection‌	4-Core Cable/Separated Aviation Plug
‌Cable Length‌	Standard 10m Cable (Extendable)
‌Mounting Thread‌	G3/4
‌Applications‌	General Use, Rivers, Lakes, Drinking Water, Environmental Protection, etc.
