Cems Integrated Humidity Oxygen Monitoring System Online Flue Gas Analyzer

Brand Name:	JUGE
Model Number:	AG-SY07
MOQ:	1 Unit
Price:	USD1000-5000
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Product Name:

Integrated Humidity Oxygen Monitoring System

Humidity Range:

0-40%Vol

O2 Range:

Accuracy:

1%Fs @100ºC

Stability:

1%Fs/7D

Response Time:

T90 <30s After Full Preheating

Transmitter Life:

5 Years

Sensor Life:

Sensor Life

Sample Gas Flow Rate:

1~5L/Min

Power Supply:

220VAC ± 10%, 50Hz, With A Maximum Of 20W

Supply Ability:

100 Unit/Week

Highlight:

Cems Integrated Humidity Oxygen Monitoring System

Integrated Humidity Online Flue Gas Analyser

Cems Online Flue Gas Analyser

Product Description

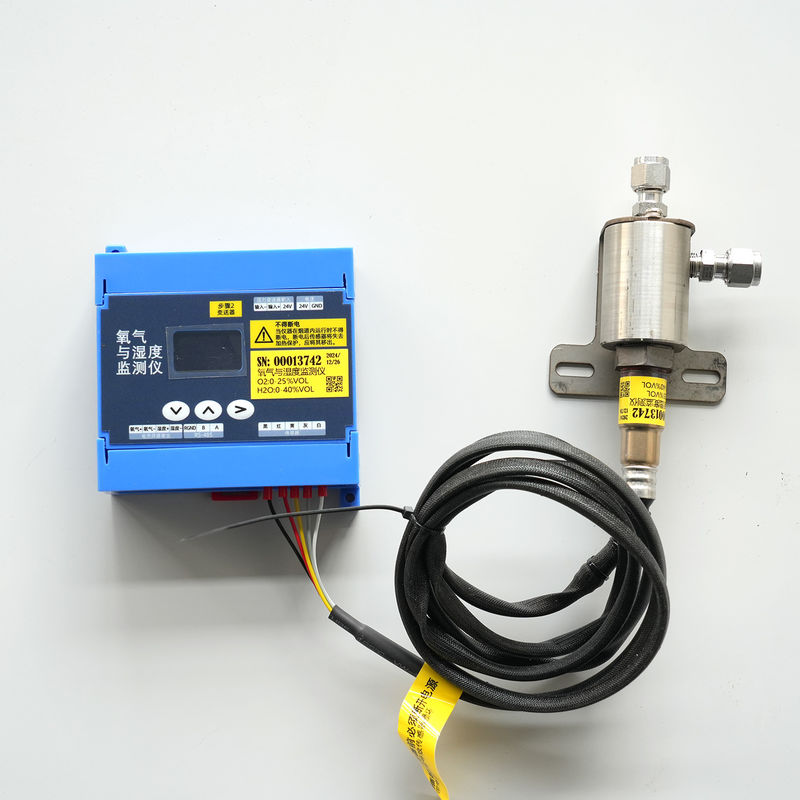

Cems Integrated Humidity Oxygen Monitoring System Flue Gas Analyzer

>>Overview

The AG-SY07 Integrated Humidity-Oxygen Monitoring System adopts internationally advanced high-temperature resistive-capacitive humidity sensor technology. With its unique temperature-resistant design, it enables accurate long-term online measurement of gas oxygen and humidity in high-temperature (200°C) and high-humidity environments. Characterized by high-temperature resistance, high measurement precision, weak acid tolerance, strong anti-interference capability, rapid response, and stable reliability, it is widely used for oxygen and humidity analysis in high-temperature environments before and after desulfurization and denitrification processes in flue gases from coal-fired power plants, chemical plants, and steel mills.

>>Feature

Capable of long-term operation in high-temperature environments up to 200°C;
Imported-brand sensors ensure extended analyzer service life;
Probe fabricated with specialized materials for enhanced corrosion resistance;
High ingress protection (IP67) enclosure design for harsh outdoor conditions;
Precision automatic temperature compensation eliminates ambient temperature effects;
Simple operation, extended lifespan, and low-maintenance design;
Volume percentage output compliant with detection standards.

>>Main technical parameters

Principle	Ion-flow humidity sensor
Range	Humidity: 0-40% VOL O2: 0-2%
Accuracy	±1%FS @100ºC
Stability	±1%FS/7d
Response time	T90 <30s after full preheating
Power Supply	220VAC ± 10%, 50Hz, with a maximum of 20W
Sensor life	Normal use for more than 2 years
Transmitter life	Normal use for more than 5 years
Output	1.Modbus, 1 route, isolated 1.5KV, RS485-2W (module required) 2. Three-line system 4-20 mA, 1 or 2 road, isolated 1.5KV, the load resistance is less than 500 ohms
Oxygen pressure	Normal pressure ± 10%
Sample gas flow rate	1~5L/min
Working ambient temperature	Transmitter: -10~50ºC, no condensation Sensor: 0~200ºC (except for cable)
Storage and transportation environment	-10 - 50ºC, <90% RH, with no condensation When the storage and transportation environment is less than 5ºC, the transmitter should be placed in room temperature for more than 4 hours before use
Background gas components	No combustible gas, no corrosive gas
