Digital Oil In Water Sensor Water Quality Sensor SS316L Housing 12VDC

Brand Name:	JUGE
Model Number:	AG6900D
MOQ:	1 Unit
Price:	USD300-2000
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Power Supply::

12VDC

Output:

RS485 MODBUS RTU

Housing Material:

316L Stainless Steel

Range:

0-50 Mg/L

Pressure Range:

≤0.3 MPa

Temperature Range:

0-50°C

Supply Ability:

100 Unit/Week

Highlight:

oil in water sensor 12VDC

SS316L Housing oil in water sensor

Water Quality Sensor SS316L Housing

Product Description

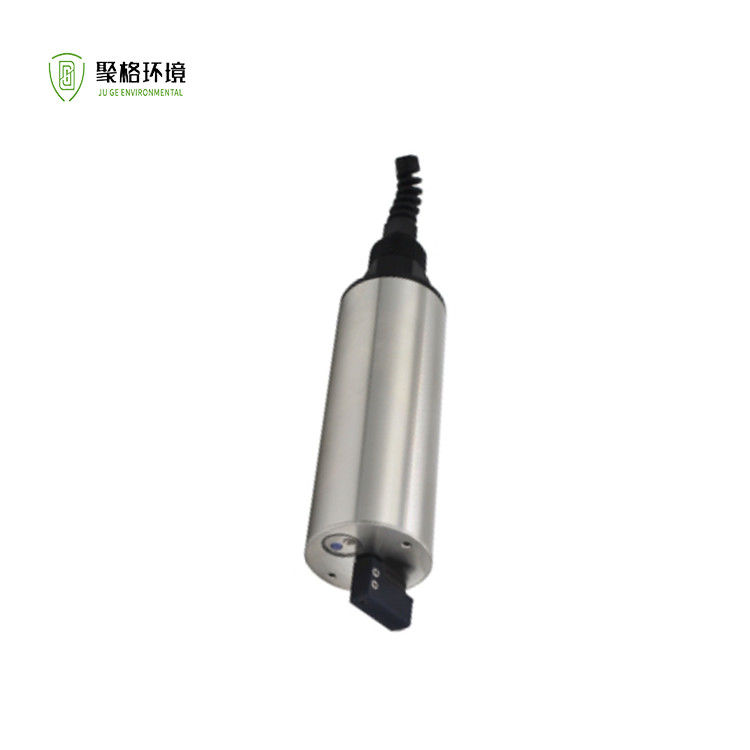

Digital Oil and Grease Water Quality Sensor

>>Overview

The oil-in-water sensor operates based on the characteristic that dissolved oils exhibit specific absorption and emission peaks in the spectrum. It emits monochromatic light at the spectral absorption peak of dissolved oils into water. The dissolved oils absorb energy from this monochromatic light and subsequently emit light at a different wavelength corresponding to their emission peak. The intensity of this emitted light is directly proportional to the concentration of dissolved oils in the water.

Digital Oil-in-Water Sensor Probe features direct immersion measurement without requiring sampling or pretreatment; operates without chemical reagents, eliminating secondary pollution; offers short response time for continuous monitoring; incorporates an automatic cleaning function to minimize maintenance. Suitable for environmental protection and general water treatment applications.

>>Feature

Utilizes spectral method to accelerate response time and ensure stable signal.
Electrode housing is constructed with stainless steel, capable of withstanding temperatures from 0 to 45°C.
Equipped with a dedicated high-quality quad-core shielded cable for oil-in-water sensors, enhancing signal accuracy and stability.

>>Technical Parameter‌‌

Power Supply: 12VDC
Output: RS485 MODBUS RTU

Housing Material: 316L Stainless Steel
Protection Rating: IP68

Measuring Range: 0-50 mg/L

Pressure Range: ≤0.3 MPa

Temperature Range: 0-50°C

Calibration: Standard Solution Calibration, Water Sample Calibration

Connection: 4-core Cable

Cable Length: Standard 10m (Extendable to 100m)

Applications: Environmental Protection, General Water Treatment
