Online Gas Monitoring System

SO2 NO NO2 Online Continuous Emission Monitoring System CEMS Online Gas Analyzer

All Category

Multiparameter Water Quality Monitoring

Gas Detector

Mr. Leon Chen

contact@jsaghj.com

+86 13376051325

Contact Now

All Category

Multiparameter Water Quality Monitoring

SO2 NO NO2 Online Continuous Emission Monitoring System CEMS Online Gas Analyzer

Brand Name:	JUGE
Model Number:	AG-CEMS07
MOQ:	1 Unit
Price:	USD20000-50000
Packaging Details:	Neutral carton
Payment Terms:	Online order, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Product Name:

CEMS For SO2 NO NO2

SO2 Range:

0-200mg/m3 OEM

NO Range:

0-200mg/m3 OEM

NO2 Range:

0-200mg/m3 OEM

O2 Range:

0-25%

Repeatability:

≤2%

Response Time:

≤120S

Linearity Error:

≤±2%F.S.

Supply Ability:

100 Unit/Week

Highlight:

SO2 NO NO2 Online Gas Analyzer

CEMS Online Gas Analyzer

NO2 Online Continuous Emission Monitoring System

Product Description

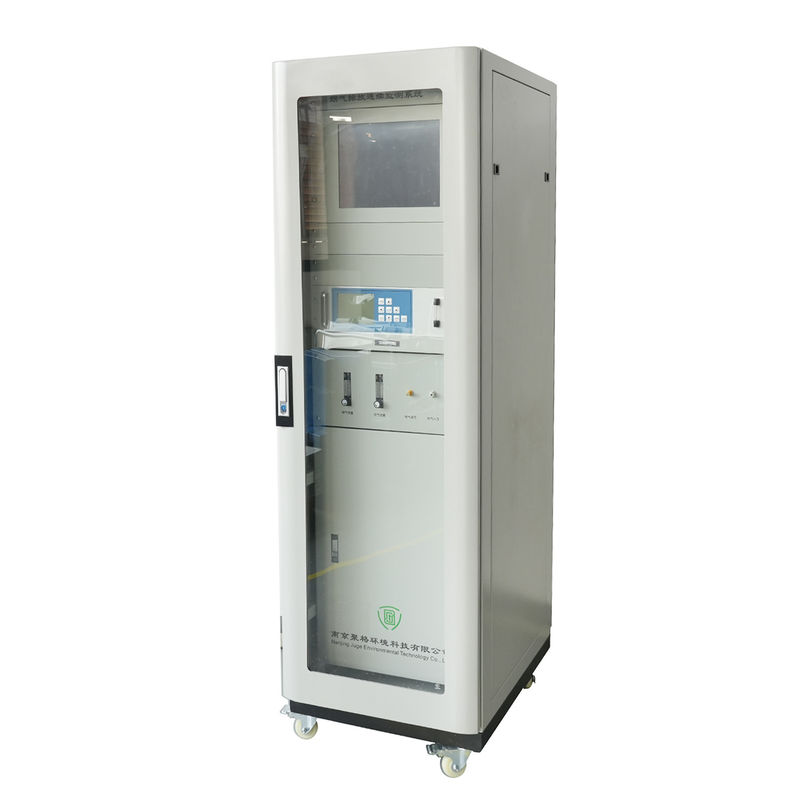

Online SO2 NO NO2 Continuous Emission Monitoring System CEMS Online Gas Analyzer

>>Overview

It can monitor the real-time concentration of particulate matter and gaseous pollutants in the flue gas emitted from stationary pollution sources (such as boilers, industrialfurnaces, incinerators, etc.), enabling supervision of production and emissions fromthe source.

CEMS (Continuous Emission Monitoring System) generally consists of three basic components: the gaseous pollutant monitoring unit (SO2, NO, NO2), the flue gas parameter monitoring unit (temperature, pressure, flow rate, O2, humidity), and the data acquisition and processing unit.

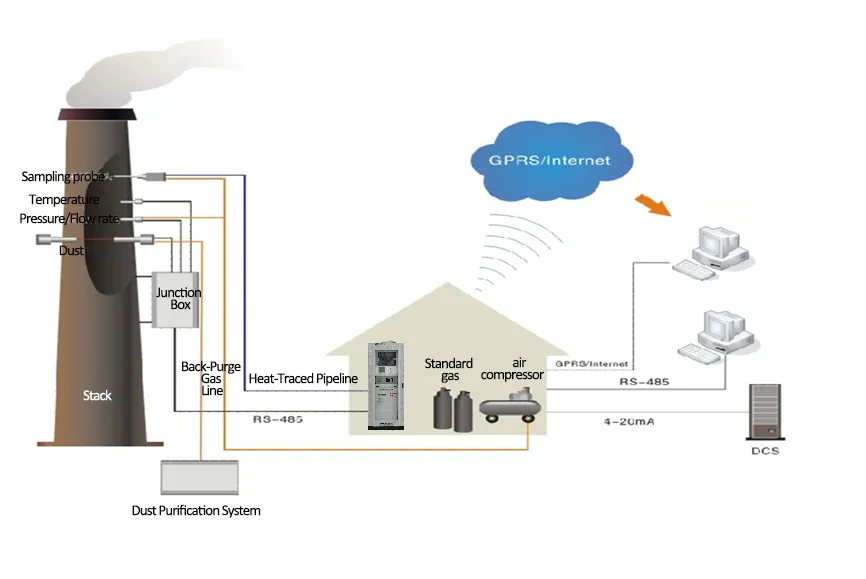

The sample gas passes through a high-temperature heated pipeline, undergoes dustremoval via atwo-stage filter,and is dehumidified by a two-stage condensation system before directly entering the gas chamber of the analyzer. The gas chamber ishoused within the analyzer and connected to an ultraviolet differential analyzer via ultraviolet optical fibers, achieving accurate measurement of the flue gas.

>>Feature
1) Secondary condensation for rapid water removal, reducing SO2 loss.
2) Long-life UV xenon lamp with high wavelength resolution ensures low detection limits, minimal temperature drift, fast response time, and accurate measurements.
3) PLC-controlled with adjustable parameters to adapt to complex working conditions.
4) Intelligent system design with traceable fault alarms for easy maintenance and troubleshooting.
5) Fully modular design, enabling flexible expansion of monitoring factors.
6) Flexible configuration: Users can choose between an NO2-NO converter or direct NO measurement as required.

>>Main technical parameters

Project			Index
Gaseous pollutant		So2	(0~200) mg/m3, the range can be customized
		No	(0~200) mg/m3, the range can be customized
		No2	(0~200) mg/m3, the range can be customized
		O2	(0~25)%
		Repetitiveness	≤2%
		24h zero drift and range drift	≤±2%f.s.
		One-week zero-point drift and range drift	≤±3%f.s.
		Linear error	≤±2%f.s.
		Response time	≤120s
Particulate matter		Measured range	(0.5~15)m
		Dust concentration range	(0~10) mg/m3, the range can be customized
		Accuracy	≤±2%f.s./24h
Flue gas parameters	Temperature	Measuring range	(0~300) ºC, is customizable
	Temperature	Accuracy
	Pressure	Measuring range	(-10~10)kpa
	Pressure	Accuracy
	Velocity of flow	Measuring range	(0~40) m/s, (0~2) kpa, the output is optional
	Velocity of flow	Accuracy
	Humidity	Measuring range	(0~40)vol%
	Humidity	Accuracy
Data acquisition and processing		Data transmission module	8-way analog input
		Data transmission module	1-channel rs485 communication interface
		IPC	6-way rs232 communication interface
		IPC	Windows7 operating system
		Operational software	Flue gas emission monitoring software monitor
Power Supply			Ac 220v,50hz,≤7kw

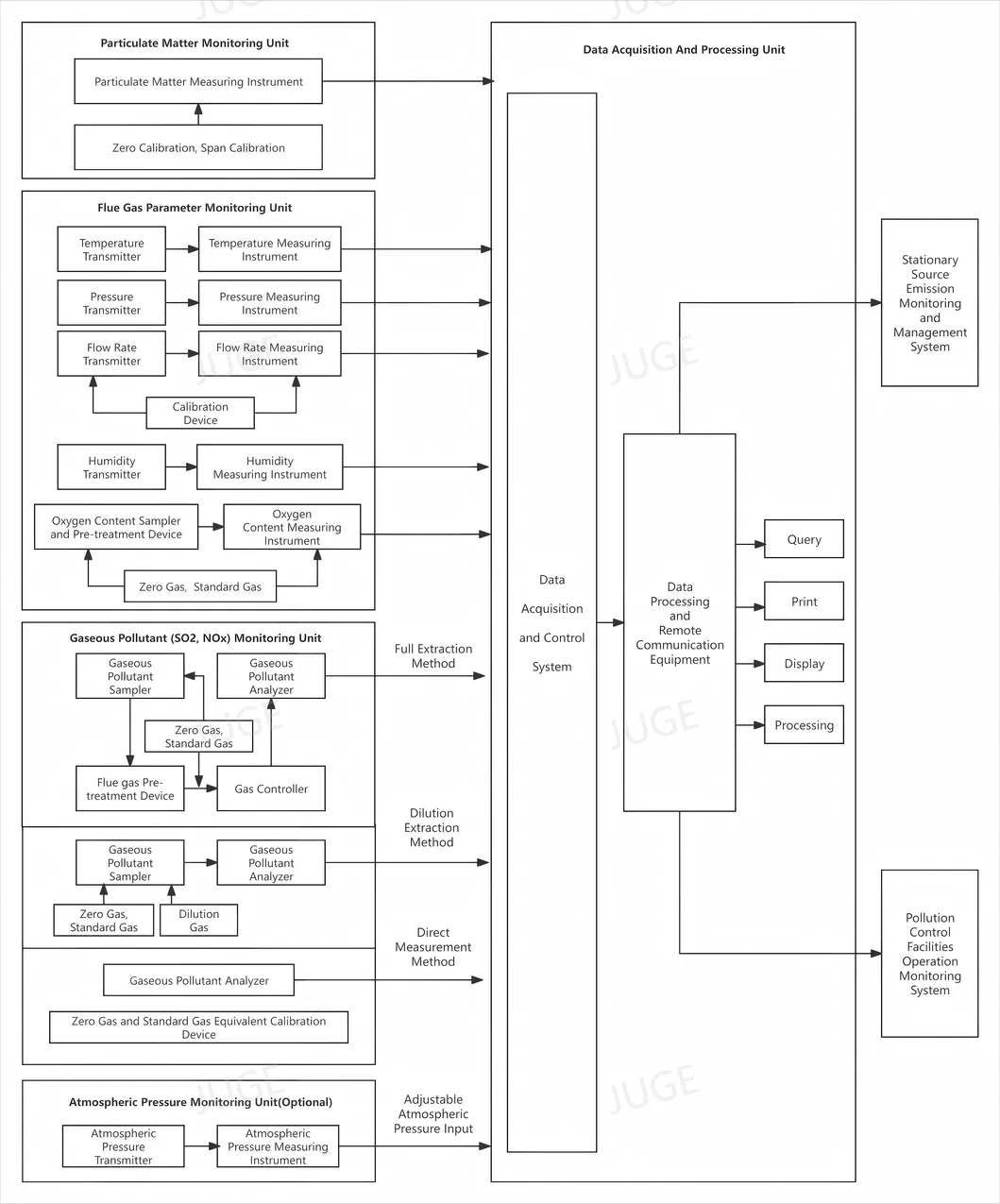

>>System composition
SO2 NO NO2 Online Continuous Emission Monitoring System CEMS Online Gas Analyzer 0
