Online Continuous Emission Monitoring System For Vocs Gas Chromatography Fid Non Methane Total Hydrocarbon Gas Analyzer

Brand Name:	JUGE
Model Number:	AG-Vocs-07
MOQ:	1 Unit
Price:	USD20000-50000
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Product Name:

CEMS For Non-Methane Total Hydrocarbon

Nmthc Range:

0-100mgc/m3 OEM

O2 Range:

0-25%

Repeatability:

≤2%

Response Time:

≤120S

Linearity Error:

≤±2%F.S.

24H Zero Drift And Range Drift:

≤±2%F.S.

1week Zero Drift And Range Drift:

≤±2%F.S.

Supply Ability:

100 Unit/Week

Highlight:

Online Continuous Emission Monitoring System

Vocs Gas Continuous Emission Monitoring System

Product Description

Online Vocs Gas Chromatography Fid Non-Methane Total Hydrocarbon Continuous Emission Monitoring System Gas Analyzer

>>Overview

Used for real-time concentration online monitoring of volatile organic compounds (VOCs) emitted from industries such as petrochemical, spray painting, injection molding, coatings, printing and dyeing, pharmaceuticals, electronics, and automotive manufacturing.

The system uses advanced GC-FID+high-temperature complete extraction technology, capable of measuring multiple parameters including methane, total hydrocarbons, non-methane total hydrocarbons, temperature, pressure, flow rate (flow), O2, humidity, and can be expanded to measure benzene series or other characteristic factors.

The sample gas passes through a dust-removal probe and is heated by a trace-heating tube before entering the high-temperature chromatograph for analysis, effectively preventing sample loss during collection and analysis. It offers excellent stability for data upload and maintenance.

>>Feature
1) The core instrument uses imported multi-port valve design with no dead volume, ensuring measurement precision and accuracy.
2) Equipped with a high-sensitivity detector and low detection limit.
3) Automatic fault recording for easy maintenance.
4) Automatic hydrogen gas source cutoff in case of flameout or hydrogen leak.
5) Expandable for additional monitoring factors.

>>Main technical parameters

Items			Parameter
NMTHC Monitoring Unit		NMTHC	(0-100)Mgc/m³,OEM
		O₂	(0-25)%
		Repeatability	≤2%
		24-Hour Zero Drift And Range Drift	≤±2%F.S.
		One Week Zero Drift And Range Drift	≤±3%F.S.
		Linearity Error	≤±2%F.S.
		Analysis Cycle	≤120s
Flue Gas Parameter	Temperature	Range	(0-300)ºC,OEM
	Temperature	Accuracy	≤±3ºC
	Pressure	Range	(-2.5-2.5)Kpa
	Pressure	Accuracy	≤0.5%
	Velocity Of Flow	Range	(0-40)m/s,(0-2)Kpa,Optional
	Velocity Of Flow	Accuracy	≤±5%
	Humidity	Range	(0~40)Vol%
	Humidity	Accuracy	±2%
Data Acquisition And Processing Unit		Data Transmission Module	8 Way Analog Input
		Data Transmission Module	1 Way Rs485
		Ipc	6 Way Rs232
		Ipc	Windows7
		Software	Vocs Monitoring Software V3.0
Power Supply			Ac 220V,50Hz,≤7Kw

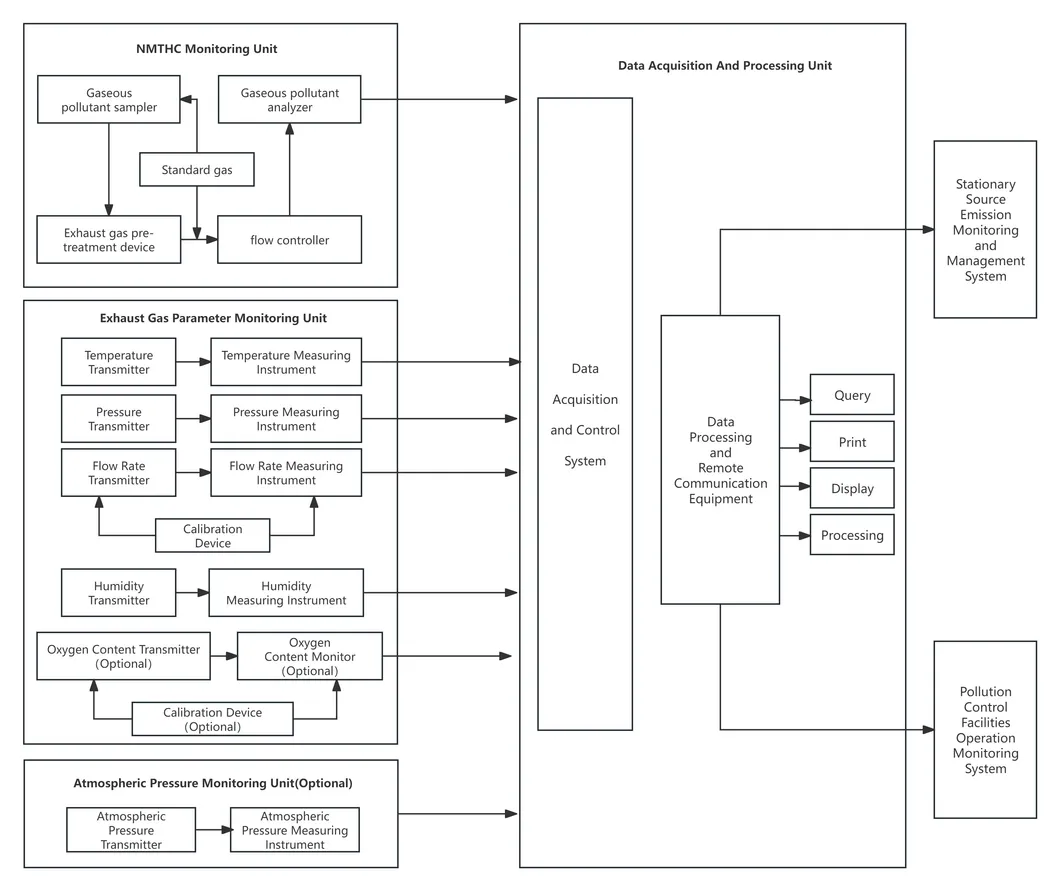

>>System composition
Online Continuous Emission Monitoring System For Vocs Gas Chromatography Fid Non Methane Total Hydrocarbon Gas Analyzer 0
