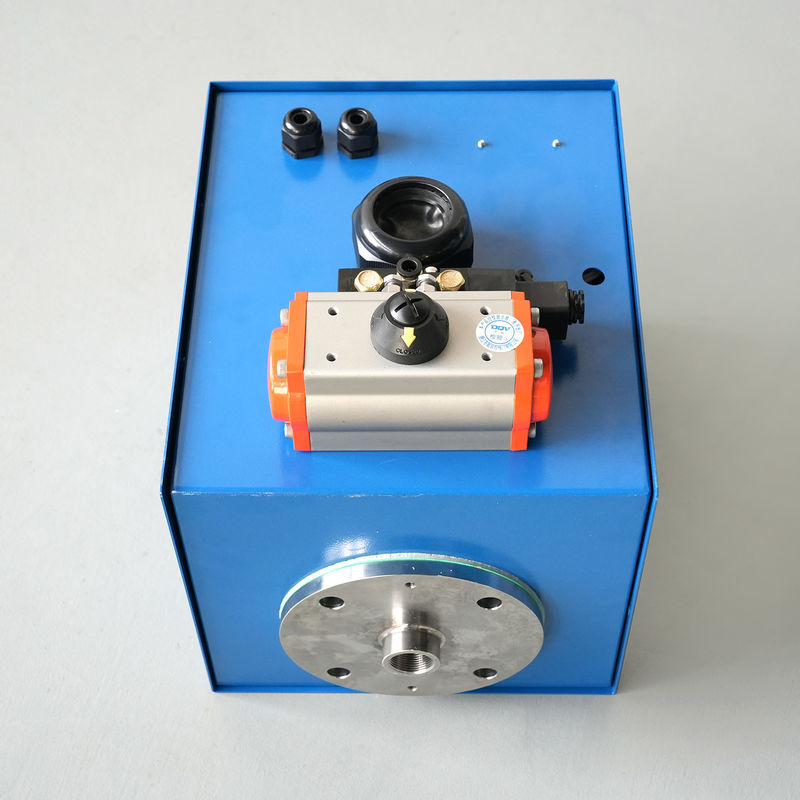

PT100 Cems Gas Analyzer Integrated Temperature Pressure Online Gas Monitoring System

Brand Name:	JUGE
Model Number:	AG-TPF07
MOQ:	1 Unit
Price:	USD500-2000
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Product Name:

Integrated Temperature Pressure Flow Rate Monitoring System

Flow Velocity Range:

0-30m/S

Temperature Range:

0-300 Celsius

Pressure Sensor:

Silicon Piezoresistive Pressure Sensor

Temperature Sensor:

PT100

Sampling Method:

Insertion-Type

Installation Method:

DN65 Flange Connection

Pitot Tube Length:

500, 800, 1100, 1500 Mm (Adjustable Pitot Tube)

Supply Ability:

100 Unit/Week

Highlight:

PT100 Cems Gas Analyzer

Cems Online Gas Monitoring System

PT100 online flue gas analyser

Product Description

Cems Flue Gas Analyzer Integrated Temperature Pressure Flow Rate Monitoring System

>>Overview

The AG-TPF07 Temperature-Pressure-Flow Monitor consists of a Pitot tube, resistance temperature detector (RTD), differential/absolute pressure sensor array, blowback unit, and signal control processor. Designed specifically for high-dust, high-temperature, high-humidity, and highly corrosive environments in emission flue gas monitoring, this integrated system provides real-time continuous measurement of flue gas velocity, dynamic pressure, static pressure, and temperature, suitable for monitoring gas flow velocity, pressure, temperature, and volumetric flow rate. The AG-TPF07 employs the Pitot tube principle to measure flue gas velocity. By using the Pitot tube, pressure sensors, and temperature sensors to detect the dynamic pressure, static pressure, and temperature of the flue gas, these parameters correlate with the gas flow velocity, enabling quantitative determination of the emission gas velocity.

>>Feature

Real-time measurement of flue gas velocity, static pressure, and temperature, with three-channel two-wire loop 4-20mA analog output.
Low starting flow velocity: 1 m/s.
LCD display for real-time data and signal visualization, enabling direct readouts and simplified calibration.
High measurement accuracy, robust reliability, and continuous 24/7 operation capability.
Split-type design with telescopically adjustable Pitot tube for flexible installation.
Automatic/manual blowback control: Programmable purge intervals or external trigger compatibility (220V signal input) for particulate cleaning, integrating with existing PLC systems.
Simplified installation wiring and minimal maintenance requirements.
Compact footprint for space-constrained deployment.

>>Main technical parameters

Range	Flow Velocity: 0-30 m/s (Startup threshold: 2 m/s) Pressure: ±2.5 kPa (gauge) Temperature: 0-300°C
Accuracy	Flow Velocity: ±1% F.S Pressure: ±0.1% F.S Temperature: ±3°C
Resolution	Flow Velocity: 0.01 m/s Pressure: 0.01 kPa Temperature: 0.1°C
Pressure sensor	AG-TFP07-F: Silicon piezoresistive pressure sensor
Temperature sensor	PT100
Sampling method	Insertion-type
Installation method	DN65 flange connection
Pitot tube length	500, 800, 1100, 1500 mm (adjustable Pitot tube)
Working environment	Ambient Temperature: -25 to 65°C Vibration: <1g acceleration
Display	OLED screen (4-digit numeric display)
Power supply	220 VAC ±10%, 50 Hz, 1A
Output	Analog: 3-wire isolated 4-20 mA (load resistance <500 Ω) Digital: Modbus protocol, isolated RS485-2W (module required)
