Photoelectric Dosing Online Silicate Water Quality Analyzer 0-1000µg/L Range

Brand Name:	JUGE
Model Number:	AG9280C
MOQ:	1 Unit
Price:	USD2000-7000
Packaging Details:	Neutral carton
Payment Terms:	Online order, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Range:

0-1000 µg/L

Display Error:

±2%F.S

Repeatability:

Measurement Period:

Minimum Of 30 Min

Temperature Measurement Range:

(0.0~60.0) ℃

Isolate The Output Signal And Load:

4 ~ 20 MA (RL <500 Ω)

Instrument External Dimensions:

Height, 720, Width, 460, Depth, 360 (mm)

Supply Ability:

100 Unit/Week

Highlight:

Online Silicate Water Quality Analyzer

1000µg/L Water Quality Analyzer

Photoelectric Dosing water quality analyser

Product Description

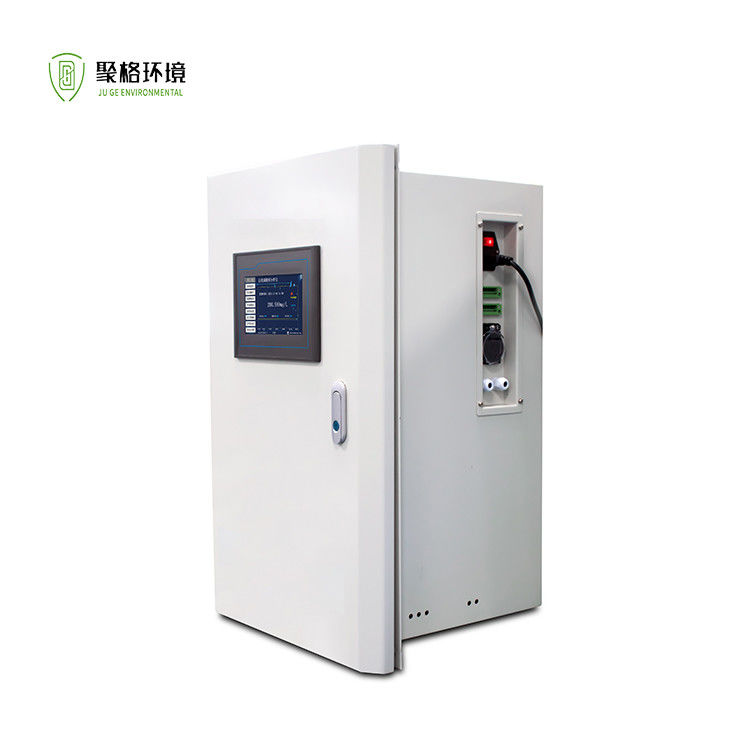

Photoelectric Dosing Online Silicate Water Quality Analyzer

>>Application
With the increasing standards of power plants and demands for desalinated water purification projects, there are significantly higher requirements for the timeliness and accuracy of silicate monitoring. To address this, our company has developed the AG9280C online silicate analyzer. It adopts a photoelectric dosing method, cold light source spectrophotometric measurement, and dead-volume-free reaction cell, ensuring measurement accuracy and reliability.

>>Features‌‌
▪ Photoelectric dosing method enables precise chemical addition.
▪ Cold light source spectrophotometric measurement extends light source lifespan.
▪ Automatic light intensity adjustment maintains accuracy despite source attenuation.
▪ Large-capacity memory stores measurement data for up to 5 years.
▪ 7-inch touchscreen color LCD provides intuitive operation and display.
▪ 6-channel isolated current output configurable for any channel, range or PID.
▪ 6 relay outputs configurable for over-limit alarms, sample interruption alarms, or system failure alarms.
▪ RS485 interface enables remote data monitoring.
▪ Historical data query supports curve display and alarm records for any time period.

>>Technical Parameter

Specification	Detail
Measurement range	0-1000 µ g / L OEM
Instrument display value error	±2%F.S
Repeatability	≤1%
Measurement period	minimum of 30 min
Stability	Baseline drift:Use a blank calibration without compromising accuracy
Stability	Chemical drift:not more than 1% reading / month (depending on reagent stability)
Type of reagents	3 kinds
Temperature Sensor	PT 100
Temperature measurement range	(0.0~60.0) ℃
Temperature measurement accuracy	± 0.5℃
Temperature compensation range	(0.1~60.0) ℃
Isolate the output signal and load	4 ~ 20 mA (RL <500 Ω)
Alarm contact capacity	normally open contact AC220V / 3A, DC24V / 5A
Working conditions	Temperature:0~45℃ Humidity: ≤85%
Sample conditions	Flow rate:100-300 mL/min Temperature:(5~50)℃ Pressure:14 KPa
Permissible solid composition of water sample	≤ 5 microns (no glue is allowed, no grease)
Power supply	AC220V± 10% 50Hz±0.5Hz power: 150W
Instrument external dimensions	height, 720, width, 460, depth, 360 (mm)
Instrument opening size	665x410mm

>>Dimension

Photoelectric Dosing Online Silicate Water Quality Analyzer 0-1000µg/L Range 0
