0-50mg/L Online Phosphate Analyzer Water Analyzer Instrument RS485 interface

Brand Name:	JUGE
Model Number:	AG9282C
MOQ:	1 Unit
Price:	USD2000-7000
Packaging Details:	Neutral carton
Payment Terms:	Online order, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Range:

0-50mg/L

Display Error:

±1%F.S

Repeatability:

Measurement Period:

Minimum Of 20 Min

Temperature Measurement Range:

(0.0~60.0) ℃

Isolate The Output Signal And Load:

4 ~ 20 MA (RL <500 Ω)

Instrument External Dimensions:

Height, 720, Width, 460, Depth, 360 (mm)

Supply Ability:

100 Unit/Week

Highlight:

RS485 interface Online Phosphate Analyzer

50mg/L Online Phosphate Analyzer

Water Analyzer Instrument RS485 Interface

Product Description

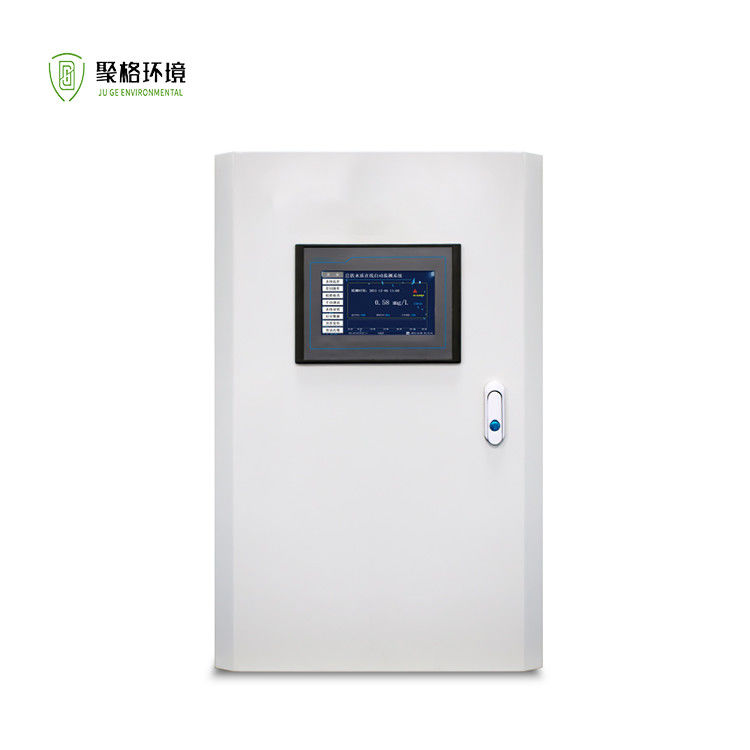

Online Water Quality Phosphate Analyzer

>>Application
With the increasing standards of power plants and the requirements of desalination and water purification projects, the timeliness and accuracy of phosphate monitoring have significantly improved. Particularly, the widespread adoption of low-phosphorus treatment technology has made the measurement accuracy of low-concentration phosphate even more critical. The AG9282C Phosphate Analyzer developed by our company utilizes a photometric dosing method, cold light source spectrophotometric measurement, and a dead-volume-free reaction cell, ensuring precise and reliable instrument performance.

>>Features‌‌
▪ ‌Photometric dosing method‌ enables precise reagent measurement.
▪ ‌Cold light source spectrophotometry‌ extends the lifespan of the light source.
▪ ‌Automatic light intensity adjustment‌ ensures measurement accuracy even after light source attenuation.
▪ ‌Large-capacity memory‌ stores measurement data for up to 5 years.
▪ ‌7-inch touchscreen color LCD‌ offers intuitive operation and display.
▪ ‌4 isolated current outputs‌ configurable for any channel, range, or PID.
▪ ‌4 relay outputs‌ programmable for over-limit alarms, sample-loss alarms, or system fault alarms.
▪ ‌RS485 interface‌ supports remote data monitoring.
▪ ‌Historical data and trend curves‌ accessible for any specified time period.

>>Technical Parameter

Specification	Detail
Measurement range	0-50mg / L OEM
Instrument display value error	±1%F.S
Repeatability	≤1%
Measurement period	minimum of 20 min
Stability	Baseline drift:Use a blank calibration without compromising accuracy
Stability	Chemical drift:not more than 1% reading / month (depending on reagent stability)
Type of reagents	1 kinds
Temperature Sensor	PT 100
Temperature measurement range	(0.0~60.0) ℃
Temperature measurement accuracy	± 0.5℃
Temperature compensation range	(0.1~60.0) ℃
Isolate the output signal and load	4 ~ 20 mA (RL <500 Ω)
Alarm contact capacity	normally open contact AC220V / 3A, DC24V / 5A
Working conditions	Temperature:0~45℃ Humidity: ≤85%
Sample conditions	Flow rate:100-300 mL/min Temperature:(5~50)℃ Pressure:14 KPa
Permissible solid composition of water sample	≤ 5 microns (no glue is allowed, no grease)
Power supply	AC220V± 10% 50Hz±0.5Hz power: 150W
Instrument external dimensions	height, 720, width, 460, depth, 360 (mm)
Instrument opening size	665x410mm

>>Dimension

0-50mg/L Online Phosphate Analyzer Water Analyzer Instrument RS485 interface 0
