Large Memory‌ Sodium Ion Analyzer Online Water Analyzer Instrument ‌RS485 Interface

Brand Name:	JUGE
Model Number:	AG9264C
MOQ:	1 Unit
Price:	USD2000-7000
Packaging Details:	Neutral carton
Payment Terms:	Online order, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Range:

（2.00～9.00）pNa（229000μg/L～0.23μg/L）

Resolution:

0.01pNa Or 0.1μg/L

Display Error:

±0.05pNa Or ±5µg/L

Temperature Measurement Range:

(0.0~60.0) ℃

Isolate The Output Signal And Load:

4 ~ 20 MA (RL <500 Ω)

Instrument External Dimensions:

Height, 720, Width, 460, Depth, 360 (mm)

Supply Ability:

100 Unit/Week

Highlight:

Large Memory‌ Sodium Ion Analyzer

Water Analyzer Instrument ‌RS485 Interface

Sodium Ion Analyzer RS485 Interface

Product Description

Online Water Quality Hydrazine Analyzer

>>Application
With the increasing regulatory standards in power plants and the rising requirements for demineralized water and condensate treatment processes, the timeliness and accuracy of sodium ion monitoring have become significantly more critical. To address this, our company has developed the AG9264C Online Sodium Ion Analyzer. Featuring a constant-pressure water sample system and continuous alkalization design, this instrument ensures precise and reliable measurements.

>>Features‌‌

‌Constant-pressure water sample‌ ensures stable alkalization effects.
‌Unique flow path system‌ guarantees rapid and accurate measurements.
‌Built-in calibration pump‌ simplifies calibration procedures.
‌2–5-point calibration‌ enhances measurement accuracy.
‌Large-capacity memory‌ stores measurement data for up to 5 years.
‌7-inch touch color LCD screen‌ provides intuitive operation and clear visualization.
‌2 isolated current outputs‌ (configurable for any range, linear or logarithmic output).
‌2 relay outputs‌ (configurable as high/low limit alarms).
‌RS485 interface‌ enables remote data monitoring.
‌Queryable data‌ for curves and historical records within any timeframe.
‌Wide measurement range‌: pNa2–pNa9 (229,000–0.23 μg/L).
‌Uncertainty‌: ±0.05 pNa or ±1 μg/L.

>>Technical Parameter

Specification	Detail
Measurement range	(2.00～9.00)pNa(229000μg/L～0.23μg/L)
Resolution	0.01pNa or 0.1μg/L
Display error	±0.05pNa or ±5μg/L
Temperature Sensor	NTC10K
Temperature measurement range	(0.0~60.0) ℃
Temperature measurement accuracy	± 0.5℃
Temperature compensation range	(0.1~60.0) ℃
Isolate the output signal and load	4 ~ 20 mA (RL <500 Ω)
Alarm contact capacity	normally open contact AC220V / 3A, DC24V / 5A
Working conditions	Temperature:0~45℃ Humidity: ≤85%
Sample conditions	Flow rate:100-300 mL/min Temperature:(5~45)℃ Pressure:50-300 KPa
Permissible solid composition of water sample	≤ 5 microns (no glue is allowed, no grease)
Power supply	AC220V± 10% 50Hz±0.5Hz power: 150W
Instrument external dimensions	height, 720, width, 460, depth, 360 (mm)
Instrument opening size	665x410mm

>>Dimension

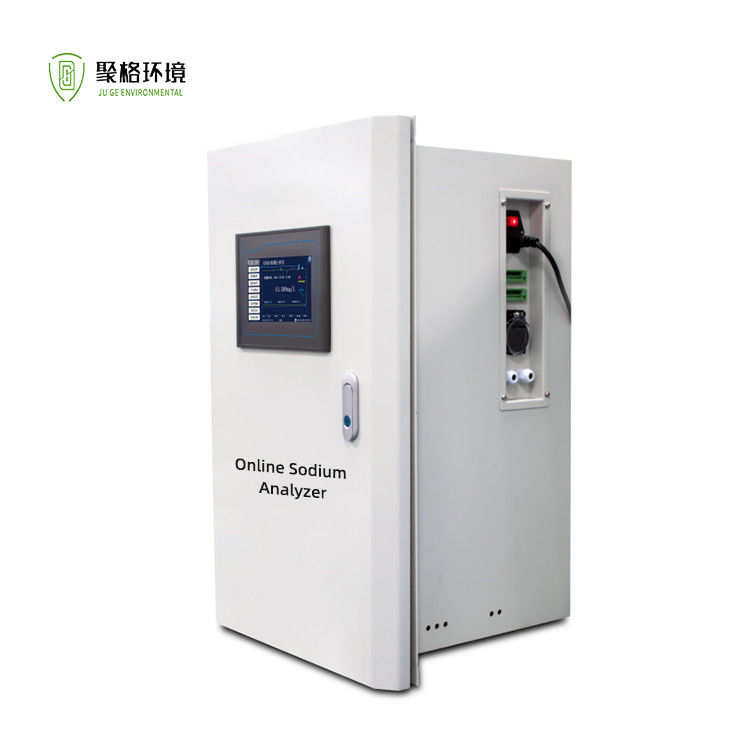

Large Memory‌ Sodium Ion Analyzer Online Water Analyzer Instrument ‌RS485 Interface 0
