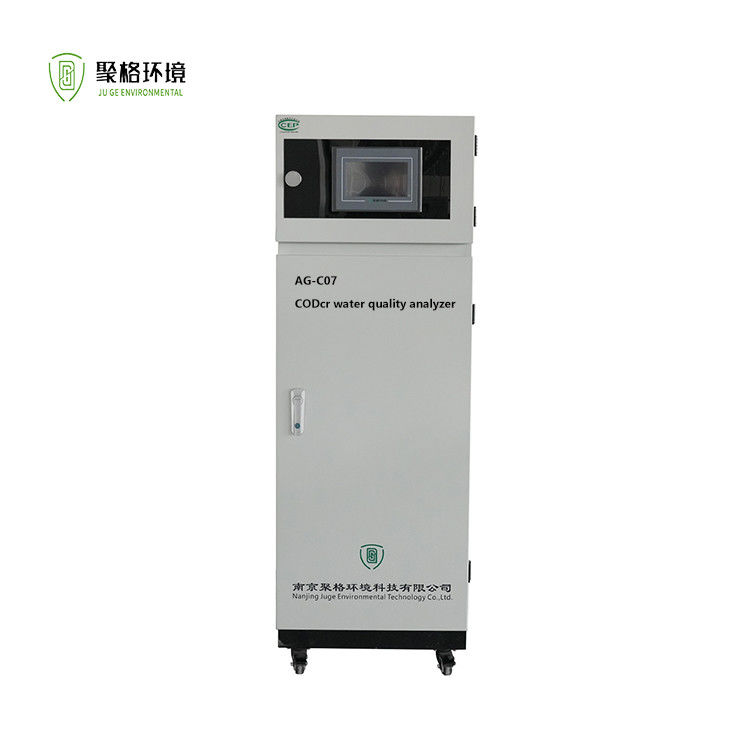

Online Codcr Water Quality Monitor Chemical Oxygen Demand Analyzer 30min Period

This method is suitable for wastewater with a chemical oxygen demand (COD) ranging from 10 to 5000 mg/L and chloride ion (Cl-) concentrations below 2 g/L. Based on actual user requirements, it can also be applied to wastewater with chloride ion (Cl-) concentrations below 20 g/L.

1. Method Basis: National Standard HJ 828-2017 "Water Quality-Determination of Chemical Oxygen Demand-Potassium Dichromate Method".
2. Measurement Range: 10-5000 mg/L.
3. Indication Error: ≤±8% for concentrations <100 mg/L; ≤±5% for concentrations ≥100 mg/L.
4. Repeatability: ≤5%.
5. Measurement Cycle: Minimum digestion time of 30 minutes; adjustable between 10-30 minutes based on actual water samples.
6. Sampling Cycle: Interval measurement (adjustable from 20-9999 minutes) or fixed-point measurement modes.
7. Calibration/Verification Cycle: Adjustable at any interval (1-99 days) and time.
8. Maintenance Cycle: ≥168 hours; each maintenance takes ~1 hour.
9. Reagent Consumption: <0.5 yuan/sample.
10. Output: RS-232, 4-20 mA, RS-485.
11. Environmental Requirements: Temperature-controlled indoor environment (5-40°C recommended); humidity 45-85%.
12. Power Supply: AC220±10% V, 50±1% Hz, 5A.
13. Dimensions: H1500 × W500 × D450 (mm).
14. Additional Features:

• Data retention during alarm or power failure;
• Touchscreen display and command input;
• Automatic residual reactant discharge and state recovery after power restoration or abnormal reset.

Unique Design: This product features a distinctive design that ensures lower failure rates, reduced maintenance requirements, minimal reagent consumption, and higher cost-effectiveness compared to similar products.

1. Selector Valve Assembly:

   • Enables flexible reagent sampling timing and diverse channel configurations.
   • Minimizes dead volume for easy maintenance and extended service life.

2. Micro-Dosing Unit:

   • Utilizes a visual photoelectric system for precise reagent measurement, eliminating quantitative errors caused by peristaltic pump tube wear.
   • Achieves accurate micro-dosing with 0.7 mL per dose, significantly reducing reagent usage.

3. Sample Introduction Unit:

   • Employs a peristaltic pump with negative pressure suction, creating an air buffer zone between reagents and the pump tube to prevent corrosion.
   • Simplifies and enhances flexibility in reagent mixing.

4. Sealed Digestion Unit:

   • Operates under high-temperature and high-pressure conditions to accelerate reactions.
   • Eliminates corrosion risks from volatile gases in open systems.

5. Reagent Tubing:

   • Uses imported modified PTFE (polytetrafluoroethylene) transparent tubing with an inner diameter >1.5 mm to minimize clogging by particulate matter in water samples.
