Online Water Quality Hydrazine Analyzer With ‌Large Capacity Memory

Brand Name:	JUGE
Model Number:	AG9267C
MOQ:	1 Unit
Price:	USD2000-7000
Packaging Details:	Neutral carton
Payment Terms:	Online order, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Range:

0-100 µg/L

Display Error:

±2%F.S

Repeatability:

Measurement Period:

Minimum Of 25 Min

Temperature Measurement Range:

(0.0~60.0) ℃

Isolate The Output Signal And Load:

4 ~ 20 MA (RL <500 Ω)

Instrument External Dimensions:

Height, 720, Width, 460, Depth, 360 (mm)

Supply Ability:

100 Unit/Week

Highlight:

Online Water Quality Hydrazine Analyzer

‌Large Capacity Memory Hydrazine Analyzer

‌Large Capacity Memory Water Quality Analyzer

Product Description

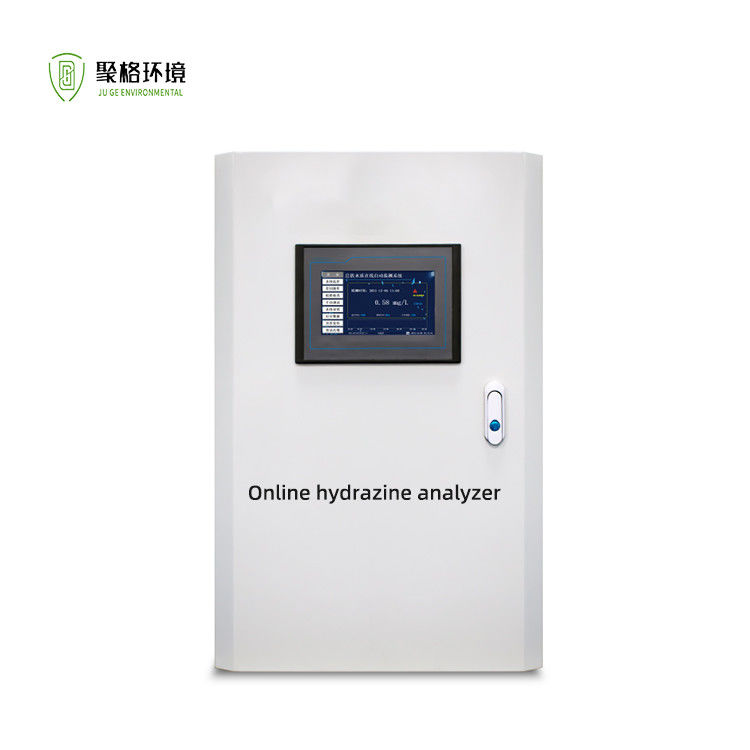

Online Water Quality Hydrazine Analyzer

>>Application
To ensure the deaeration efficiency of the water supply system, hydrazine is added after the deaerator to achieve chemical deaeration. This requires maintaining a surplus of hydrazine in the system, which imposes higher demands on the timeliness and accuracy of hydrazine monitoring. The AG9267C Hydrazine Analyzer developed by our company adopts a photometric dosing method, cold light source spectrophotometry, and a dead-volume-free reaction cell, ensuring precise and reliable measurement.

>>Features‌‌

‌Photometric dosing method‌ enables accurate chemical measurement.
‌Cold light source spectrophotometry‌ prolongs the service life of the light source.
‌Automatic light intensity adjustment‌ ensures measurement accuracy even as the light source ages.
‌Temperature-controlled reaction system‌ guarantees stable measurement and calibration.
‌Large-capacity memory‌ stores measurement data for up to 5 years.
‌7-inch touch color LCD screen‌ provides intuitive operation and clear display.
‌1 isolated current output‌ configurable for any channel, range, or PID control.
‌1 relay output‌ configurable for over-limit alarms, sample loss alarms, or system fault alerts.
‌RS485 interface‌ supports remote data monitoring.
‌Historical data query‌ allows retrieval of measurement curves and alarms for any time period.

>>Technical Parameter

Specification	Detail
Measurement range	0-100 µg / L
Instrument display value error	±2%F.S
Repeatability	≤1%
Measurement period	minimum of 25 min
Stability	Baseline drift:Use a blank calibration without compromising accuracy
Stability	Chemical drift:not more than 1% reading / month (depending on reagent stability)
Type of reagents	1 kind
Temperature Sensor	PT 100
Temperature measurement range	(0.0~60.0) ℃
Temperature measurement accuracy	± 0.5℃
Temperature compensation range	(0.1~60.0) ℃
Isolate the output signal and load	4 ~ 20 mA (RL <500 Ω)
Alarm contact capacity	normally open contact AC220V / 3A, DC24V / 5A
Working conditions	Temperature:0~45℃ Humidity: ≤85%
Sample conditions	Flow rate:100-300 mL/min Temperature:(5~50)℃ Pressure:14 KPa
Permissible solid composition of water sample	≤ 5 microns (no glue is allowed, no grease)
Power supply	AC220V± 10% 50Hz±0.5Hz power: 150W
Instrument external dimensions	height, 720, width, 460, depth, 360 (mm)
Instrument opening size	665x410mm

>>Dimension

Online Water Quality Hydrazine Analyzer With ‌Large Capacity Memory 0
