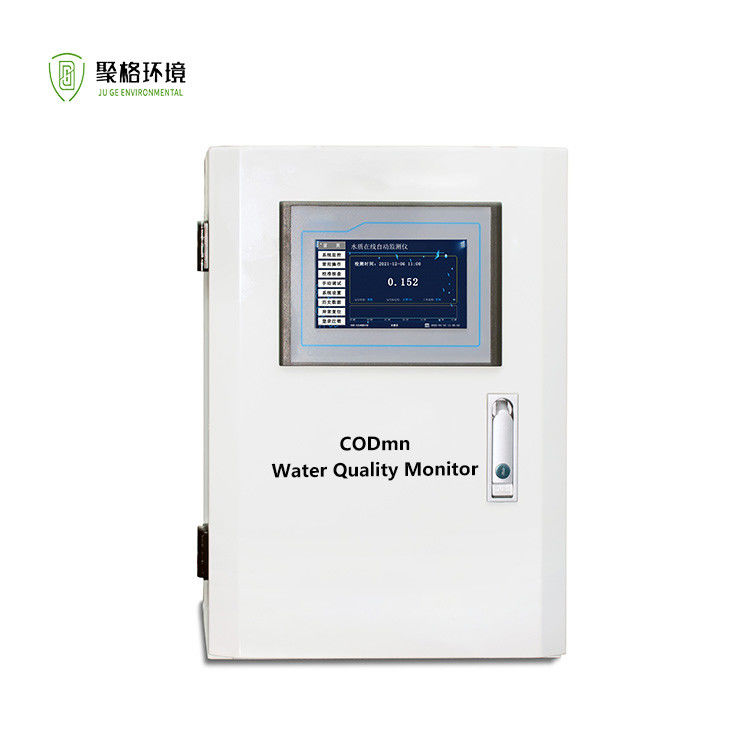

CODmn Permanganate Index Online Water Quality Analyzer

Brand Name:	JUGE
Model Number:	AG9004
MOQ:	1 Unit
Price:	USD2000-7000
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

‌Test Method‌:

Potassium Permanganate Oxidation Spectrophotometric Method

‌Measuring Range‌:

0~20mg/L (segmented Measurement, Expandable)

‌Detection Limit‌:

0.05mg/L

‌Resolution‌:

0.001mg/L

‌Accuracy‌:

±5%

‌Power Supply‌:

AC 220±10% V

‌Dimensions‌:

520H × 370W × 265D (mm)

Weight‌:

40kg

Supply Ability:

100 Unit/Week

Highlight:

codmn water quality monitor

codmn online water quality analyzer

20mg/l water quality monitor

Product Description

CODmn Permanganate Index Online Water Quality Analyzer

>>Overview

CODMn refers to the mass concentration of oxygen consumed by strong oxidizers under specific conditions to oxidize organic and inorganic reducing substances in water samples. It is a critical indicator of water pollution caused by organic and inorganic reducing agents.

This analyzer operates autonomously under ‌long-term unattended continuous monitoring‌ based on field configurations. It is widely applicable to surface water monitoring and similar scenarios. Depending on the complexity of on-site conditions, optional preprocessing systems can be integrated to ensure ‌reliable testing processes‌, ‌accurate results‌, and compliance with diverse operational demands.

>>Features‌‌
The CODMn method employs ‌potassium permanganate oxidation spectrophotometry‌. The sample is heated in a water bath for 20 minutes, during which potassium permanganate oxidizes organic pollutants. The amount of potassium permanganate consumed during this process serves as an indicator of pollutant levels.

>>Technical Parameter

‌Test Method‌	Potassium permanganate oxidation spectrophotometric method
‌Measuring Range‌	0~20mg/L (segmented measurement, expandable)
Detection Limit	0.05mg/L
Resolution	0.001mg/L
Accuracy	±5%
‌Repeatability‌	≤±5%
‌Drift (24h)‌	Zero drift: ±0.05mg/L Span drift: ±2%
‌Measurement Time‌	Minimum 20min; digestion time adjustable (5~120min) based on actual water samples
‌Measurement Modes‌	Adjustable time interval, fixed time point, or triggered measurement
‌Calibration Modes‌	Automatic calibration (1~99 days adjustable) Manual calibration based on actual water samples
‌Maintenance Cycle‌	1 month per session; ~30min per maintenance
‌Human-Machine Interface‌	Touchscreen display and command input
‌Self-Diagnosis & Protection‌	Self-diagnoses operational status; retains data during anomalies/power outages Automatically clears residual reactants and resumes operation after reset/power recovery
‌Data Storage‌	5-year data capacity
‌Input Interface‌	Digital input
‌Output Interfaces‌	1× RS232, 1× RS485 2× 4~20mA analog outputs
‌Operating Environment‌	Indoor use; recommended temperature: 5~28℃, humidity ≤90% (non-condensing)
‌Power Supply‌	Voltage: AC 220±10% V Frequency: 50±0.5 Hz Power: ≤150W (excluding sampling pump)
‌Dimensions‌	520H × 370W × 265D (mm)
