Volatile Phenol Online Water Quality Analyser With 0.001mg Resolution‌

Brand Name:	JUGE
Model Number:	AG9005
MOQ:	1 Unit
Price:	USD2000-7000
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

‌Test Method‌:

4-AAP (4-aminoantipyrine) Spectrophotometric Method

‌Measuring Range‌:

0~10mg/L (segmented Measurement, Expandable)

‌Detection Limit‌:

≤0.002mg/L

‌Resolution‌:

0.001mg

‌Accuracy‌:

±5%

‌Power Supply‌:

AC 220±10% V

‌Dimensions‌:

520H × 370W × 265D (mm)

Weight‌:

40kg

Supply Ability:

100 Unit/Week

Highlight:

Volatile phenol Water Quality Analyser

Volatile phenol online water analyzer

0.001mg Resolution‌ Water Quality Analyser

Product Description

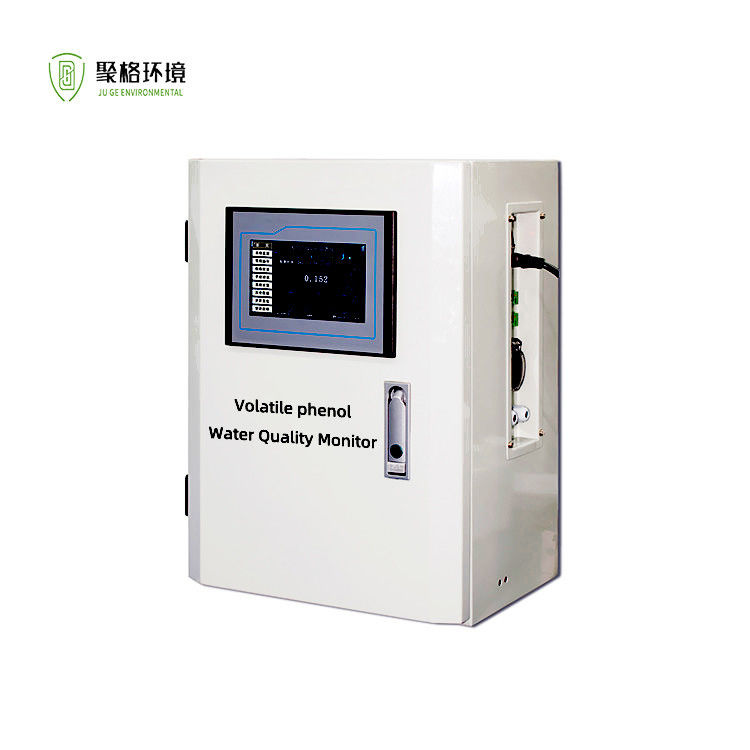

Volatile phenol Online Water Quality Analyzer

>>Overview

Phenols are categorized into ‌volatile phenols‌ and ‌non-volatile phenols‌ based on their ability to co-distill with water vapor. Volatile phenols typically refer to monohydric phenols with boiling points below 23°C. Phenolic compounds primarily originate from industrial effluents such as petroleum refining, gas scrubbing, coking, papermaking, synthetic ammonia production, wood preservation, and chemical manufacturing.

Phenols are highly toxic ‌protoplasmic toxicants‌. Low concentrations denature proteins, while high concentrations precipitate proteins, causing direct damage to cells and severe corrosion to skin and mucous membranes. Long-term consumption of phenol-contaminated water may lead to dizziness, rashes, itching, anemia, nausea, vomiting, and neurological disorders. Phenolic compounds also exhibit ‌cancer-promoting effects‌ in humans and mammals.

This analyzer operates autonomously under ‌long-term unattended continuous monitoring‌ based on field configurations. It is widely applicable to industrial wastewater discharge, process wastewater, industrial and municipal sewage treatment plants, and similar environments. Depending on the complexity of on-site conditions, optional preprocessing systems can be integrated to ensure ‌reliable testing processes‌, ‌accurate results‌, and compliance with diverse operational demands.

>>Technical Parameter

‌Test Method‌	4-AAP (4-aminoantipyrine) spectrophotometric method
‌Measuring Range‌	0~10mg/L (segmented measurement, expandable)
Detection Limit	≤0.002mg/L
Resolution	0.001mg/L
Accuracy	±5%
‌Repeatability‌	≤±5%
‌Drift (24h)‌	Zero drift: ±5% Span drift: ±10%
‌Measurement Time‌	<25min (digestion time adjustable)
‌Measurement Modes‌	Adjustable time interval, fixed time point, or triggered measurement
‌Calibration Modes‌	Automatic calibration (1~99 days adjustable) Manual calibration based on actual water samples
‌Maintenance Cycle‌	1 month per session; ~30min per maintenance
‌Human-Machine Interface‌	Touchscreen display and command input
‌Self-Diagnosis & Protection‌	Self-diagnoses operational status; retains data during anomalies/power outages Automatically clears residual reactants and resumes operation after reset/power recovery
‌Data Storage‌	5-year data capacity
‌Input Interface‌	Digital input
‌Output Interfaces‌	1× RS232, 1× RS485 2× 4~20mA analog outputs
‌Operating Environment‌	Indoor use; recommended temperature: 5~28℃, humidity ≤90% (non-condensing)
‌Power Supply‌	Voltage: AC 220±10% V Frequency: 50±0.5 Hz Power: ≤150W (excluding sampling pump)
‌Dimensions‌	520H × 370W × 265D (mm)
