Brand Name:	JUGE
Model Number:	AG9006
MOQ:	1 Unit
Price:	USD2000-7000
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

‌Test Method‌:

Fluorine Reagent Spectrophotometric Method

‌Measuring Range‌:

0~50mg/L (segmented Measurement, Expandable)

‌Detection Limit‌:

≤0.02mg/L

‌Resolution‌:

0.001mg/L

‌Accuracy‌:

±5%

‌Power Supply‌:

AC 220±10% V

‌Dimensions‌:

520H × 370W × 265D (mm)

Weight‌:

40kg

Supply Ability:

100 Unit/Week

Highlight:

50mg/l water quality monitor

50mg/l online water quality analyzer

spectrophotometric method water quality monitor

Product Description

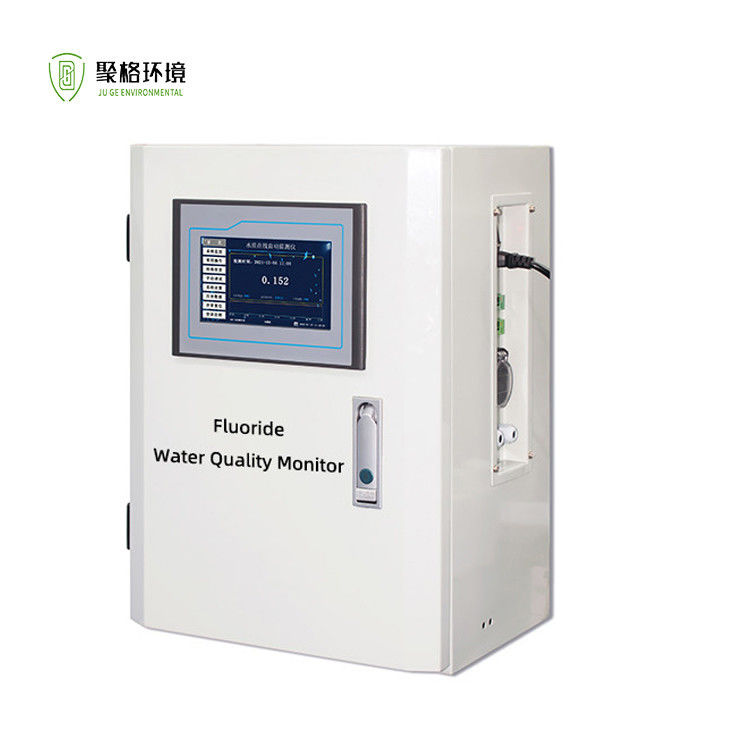

Fluoride Online Water Quality Analyzer

>>Overview

The fluoride online analyzer employs the ‌national standard method for water quality fluoride determination — fluorine reagent spectrophotometric method‌. This instrument is primarily used for monitoring surface water, groundwater, industrial wastewater, and is particularly critical in regions with high incidences of ‌dental caries‌ and ‌skeletal fluorosis‌ for monitoring drinking, surface, and groundwater sources.

The analyzer operates autonomously under ‌long-term unattended and continuous operation‌ based on field configurations. It is widely applicable to industrial wastewater discharge, industrial process wastewater, and similar scenarios. Depending on on-site complexity, optional preprocessing systems can be integrated to ensure ‌reliable testing processes‌, ‌accurate results‌, and compliance with diverse operational demands.

>>Principle

In an acetate buffer medium at pH 4.1, fluoride ions react with the fluorine reagent and lanthanum nitrate to form a blue ternary complex. The color intensity is proportional to the fluoride ion concentration. The analyzer quantifies fluoride (F⁻) by measuring absorbance at ‌620nm wavelength‌.

>>Technical Parameter

‌Test Method‌	Fluorine reagent spectrophotometric method
‌Measuring Range‌	0~50mg/L (segmented measurement, expandable)
Detection Limit	≤0.02mg/L
Resolution	0.001mg/L
Accuracy	±5%
‌Repeatability‌	≤±5%
‌Drift (24h)‌	Zero drift: ±5% Span drift: ±10%
‌Measurement Time‌	<40min (digestion time adjustable)
‌Measurement Modes‌	Adjustable time interval, fixed time point, or triggered measurement
‌Calibration Modes‌	Automatic calibration (1~99 days adjustable) Manual calibration based on actual water samples
‌Maintenance Cycle‌	1 month per session; ~30min per maintenance
‌Human-Machine Interface‌	Touchscreen display and command input
‌Self-Diagnosis & Protection‌	Self-diagnoses operational status; retains data during anomalies/power outages Automatically clears residual reactants and resumes operation after reset/power recovery
‌Data Storage‌	5-year data capacity
‌Input Interface‌	Digital input
‌Output Interfaces‌	1× RS232, 1× RS485 2× 4~20mA analog outputs
‌Operating Environment‌	Indoor use; recommended temperature: 5~28℃, humidity ≤90% (non-condensing)
‌Power Supply‌	Voltage: AC 220±10% V Frequency: 50±0.5 Hz Power: ≤150W (excluding sampling pump)
‌Dimensions‌	520H × 370W × 265D (mm)
