industrial Online Cyanide Analyzer Water Quality Analyzer Digital input

Brand Name:	JUGE
Model Number:	AG9007
MOQ:	1 Unit
Price:	USD2000-7000
Packaging Details:	Neutral carton
Payment Terms:	Online order, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

‌Test Method‌:

Isonicotinic Acid-barbituric Acid Spectrophotometric Method

‌Measuring Range‌:

0~1mg/L (segmented Measurement, Expandable)

‌Detection Limit‌:

≤0.02mg/L

‌Resolution‌:

0.001mg/L

‌Accuracy‌:

±5%

‌Power Supply‌:

AC 220±10% V

‌Dimensions‌:

520H × 370W × 265D (mm)

Weight‌:

40kg

Supply Ability:

100 Unit/Week

Highlight:

Cyanide Analyzer Digital Input

Water Quality Analyzer Digital Input

Online Cyanide Analyzer

Product Description

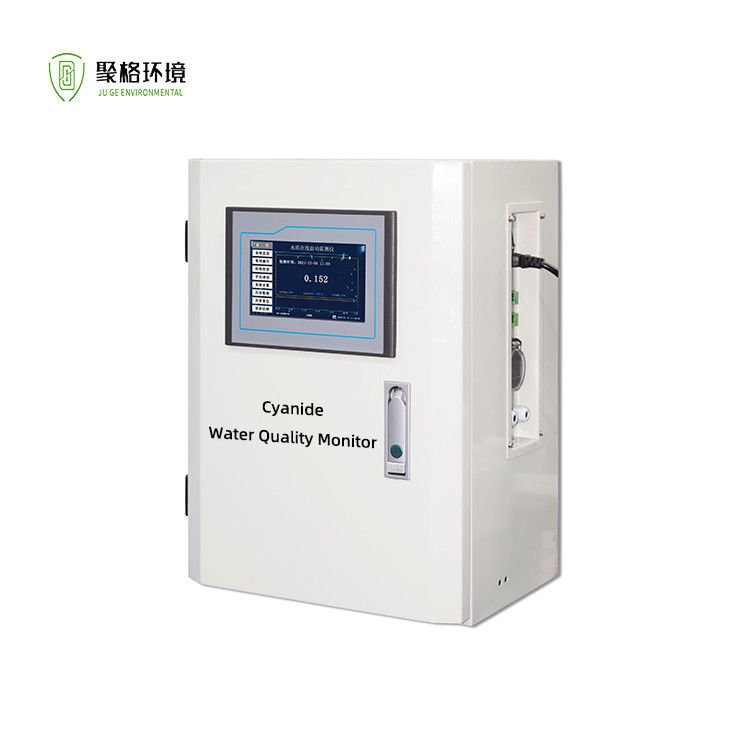

Cyanide Online Water Quality Analyzer

>>Overview

Cyanides typically refer to inorganic compounds containing the ‌cyanide ion (CN⁻)‌. Common cyanides include ‌sodium cyanide (NaCN)‌, ‌potassium cyanide (KCN)‌, and ‌hydrogen cyanide (HCN)‌. These simple cyanides are water-soluble and highly toxic.

Cyanides are rapidly absorbed by the human body through ingestion, inhalation, or dermal contact. Upon entering the stomach, cyanides hydrolyze into ‌hydrogen cyanide (HCN)‌ under gastric acid dissociation and enter the bloodstream. In circulation, CN⁻ binds to Fe³⁺ in ‌cytochrome oxidase‌, forming ‌cyanmethemoglobin‌, which disrupts electron transport in the respiratory chain, leading to cellular hypoxia and death. Due to cyanides' high solubility in lipids, the central nervous system—particularly respiratory centers—is acutely affected. ‌Respiratory failure‌ is the primary cause of death in acute cyanide poisoning.

>>Principle

The cyanide online analyzer employs a process where ‌tartaric acid‌ and ‌zinc nitrate‌ are added to the water sample, followed by heated distillation. Simple and some complex cyanides are volatilized as ‌hydrogen cyanide (HCN)‌, absorbed by ‌sodium hydroxide‌, and reacted with ‌chloramine-T‌ to form cyanogen chloride. This intermediate reacts with the chromogenic agents ‌isonicotinic acid‌ and ‌pyrazolone‌, rapidly generating a red-colored compound. The compound exhibits maximum absorbance at ‌546nm‌ and remains stable within a defined timeframe.

>>Technical Parameter

‌Test Method‌	Isonicotinic acid-barbituric acid spectrophotometric method
‌Measuring Range‌	0~1mg/L (segmented measurement, expandable)
Detection Limit	≤0.02mg/L
Resolution	0.001mg/L
Accuracy	±5%
‌Repeatability‌	≤±5%
‌Drift (24h)‌	Zero drift: ±5% Span drift: ±10%
‌Measurement Time‌	<25min (digestion time adjustable)
‌Measurement Modes‌	Adjustable time interval, fixed time point, or triggered measurement
‌Calibration Modes‌	Automatic calibration (1~99 days adjustable) Manual calibration based on actual water samples
‌Maintenance Cycle‌	1 month per session; ~30min per maintenance
‌Human-Machine Interface‌	Touchscreen display and command input
‌Self-Diagnosis & Protection‌	Self-diagnoses operational status; retains data during anomalies/power outages Automatically clears residual reactants and resumes operation after reset/power recovery
‌Data Storage‌	5-year data capacity
‌Input Interface‌	Digital input
‌Output Interfaces‌	1× RS232, 1× RS485 2× 4~20mA analog outputs
‌Operating Environment‌	Indoor use; recommended temperature: 5~28℃, humidity ≤90% (non-condensing)
‌Power Supply‌	Voltage: AC 220±10% V Frequency: 50±0.5 Hz Power: ≤150W (excluding sampling pump)
‌Dimensions‌	520H × 370W × 265D (mm)
