Brand Name:	JUGE
Model Number:	AG9010As
MOQ:	1 Unit
Price:	USD2000-7000
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

‌Test Method‌:

Arsenomolybdenum Blue Spectrophotometric Method

‌Measuring Range‌:

0~10mg/L (segmented Measurement, Expandable)

‌Detection Limit‌:

≤0.05mg/L

‌Resolution‌:

0.001mg/L

‌Accuracy‌:

±5%

‌Power Supply‌:

AC 220±10% V

‌Dimensions‌:

520H × 370W × 265D (mm)

Weight‌:

40kg

Supply Ability:

100 Unit/Week

Highlight:

spectrophotometric method water quality monitor

spectrophotometric method online water quality analyzer

Product Description

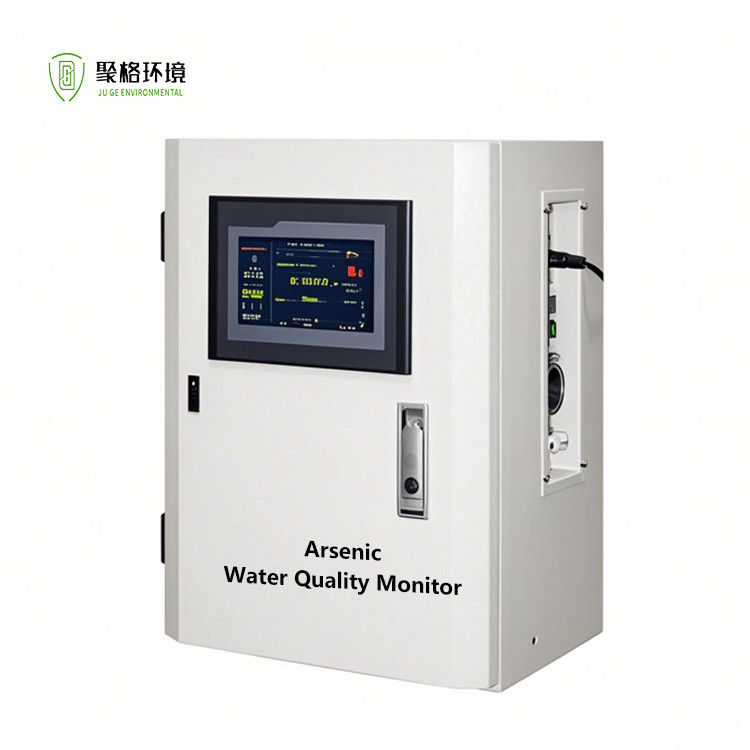

Arsenic Online Water Quality Analyzer

>>Overview

Low arsenic exposure can lead to growth retardation, reduced fertility, increased spontaneous abortions, and higher mortality rates. It also reduces skeletal mineralization and has been observed to cause atrophy of myocardial and skeletal muscle fibers in sheep and minipigs, accompanied by mitochondrial membrane alterations and potential rupture. While the biochemical role of arsenic in the body remains unconfirmed, studies suggest it may interact with enzymatic processes: arsenate substitutes phosphate as an enzyme activator, while arsenite binds to thiol groups as an enzyme inhibitor, significantly altering enzymatic activity. Reduced blood arsenic levels have been observed in hemodialysis patients, potentially linked to central nervous system disorders and vascular diseases.

This analyzer operates autonomously under ‌long-term unattended continuous monitoring‌ based on field configurations. It is widely applicable to industrial wastewater discharge, process wastewater, industrial and municipal sewage treatment plants, and similar environments. Depending on on-site complexity, optional preprocessing systems can be integrated to ensure ‌reliable testing processes‌, ‌accurate results‌, and compliance with diverse operational demands.

>>Principle

The analyzer employs a ‌spectrophotometric colorimetric method‌. Upon mixing the water sample with conditioning agents, all arsenic species are converted to arsenic ions. In an alkaline environment with a sensitizer, these ions react with an indicator to form a colored complex. The analyzer quantifies total arsenic by detecting color intensity changes at specific wavelengths and outputting corresponding values. The color intensity is directly proportional to the total arsenic concentration.

>>Technical Parameter

‌Test Method‌	Arsenomolybdenum Blue Spectrophotometric Method
‌Measuring Range‌	0~10mg/L (segmented measurement, expandable)
Detection Limit	≤0.05mg/L
Resolution	0.001mg/L
Accuracy	±5%
‌Repeatability‌	≤±5%
‌Drift (24h)‌	Zero drift: ±5% Span drift: ±10%
‌Measurement Time‌	<35min (digestion time adjustable)
‌Measurement Modes‌	Adjustable time interval, fixed time point, or triggered measurement
‌Calibration Modes‌	Automatic calibration (1~99 days adjustable) Manual calibration based on actual water samples
‌Maintenance Cycle‌	1 month per session; ~30min per maintenance
‌Human-Machine Interface‌	Touchscreen display and command input
‌Self-Diagnosis & Protection‌	Self-diagnoses operational status; retains data during anomalies/power outages Automatically clears residual reactants and resumes operation after reset/power recovery
‌Data Storage‌	5-year data capacity
‌Input Interface‌	Digital input
‌Output Interfaces‌	1× RS232, 1× RS485 2× 4~20mA analog outputs
‌Operating Environment‌	Indoor use; recommended temperature: 5~28℃, humidity ≤90% (non-condensing)
‌Power Supply‌	Voltage: AC 220±10% V Frequency: 50±0.5 Hz Power: ≤150W (excluding sampling pump)
‌Dimensions‌	520H × 370W × 265D (mm)
