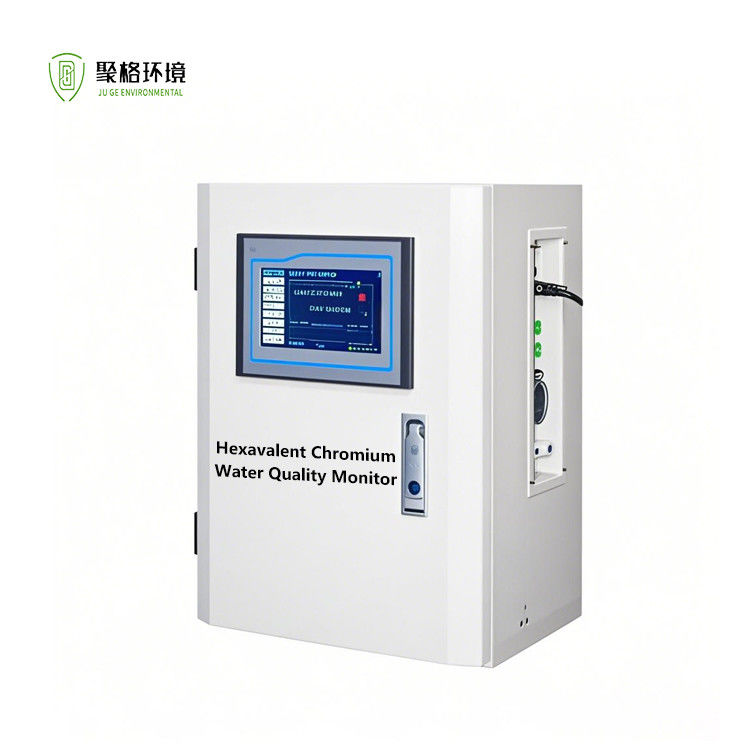

Hexavalent Chromium Online Water Quality Analyzer 0~5mg/L ‌Measuring Range‌

Brand Name:	JUGE
Model Number:	AG9010Cr6
MOQ:	1 Unit
Price:	USD2000-7000
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

‌Test Method‌:

Diphenylcarbazide Spectrophotometric Method

‌Measuring Range‌:

0~5mg/L (segmented Measurement, Expandable)

‌Detection Limit‌:

≤0.02mg/L

‌Resolution‌:

0.001mg/L

‌Accuracy‌:

±10%

‌Power Supply‌:

AC 220±10% V

‌Dimensions‌:

520H × 370W × 265D (mm)

Weight‌:

40kg

Supply Ability:

100 Unit/Week

Highlight:

Hexavalent Chromium Online Water Quality Analyzer

5mg/L ‌ Online Water Quality Analyzer

Hexavalent Chromium water quality analyser

Product Description

Hexavalent Chromium Online Water Quality Analyzer

>>Overview

The toxicity of chromium correlates with its oxidation state, with ‌hexavalent chromium (Cr⁶⁺)‌ being approximately ‌100 times more toxic than trivalent chromium (Cr³⁺)‌. Cr⁶⁺ is more readily absorbed and accumulates in the human body, increasing the risk of liver cancer. Consequently, China has classified hexavalent chromium as a key pollutant subject to total emission control.This monitor operates autonomously under ‌long-term unattended continuous operation‌ based on field configurations. It is widely applicable to industrial wastewater discharge, process wastewater, industrial and municipal sewage treatment plants, and similar environments. Depending on on-site complexity, optional preprocessing systems can be integrated to ensure ‌reliable testing processes‌, ‌accurate results‌, and compliance with diverse operational demands

>>Principle

The product utilizes the ‌diphenylcarbazide spectrophotometric method‌ for hexavalent chromium detection. After mixing the water sample with conditioning agents, Cr⁶⁺ reacts with the indicator in an acidic environment to form a colored complex. The monitor detects the color intensity change at specific wavelengths, converts it into Cr⁶⁺ concentration values, and outputs the results. The amount of colored complex generated is proportional to the hexavalent chromium concentration.

>>Technical Parameter

‌Test Method‌	Diphenylcarbazide Spectrophotometric Method
‌Measuring Range‌	0~5mg/L (segmented measurement, expandable)
Detection Limit	≤0.02mg/L
Resolution	0.001mg/L
Accuracy	±10%
‌Repeatability‌	≤±5%
‌Drift (24h)‌	Zero drift: ±5% Span drift: ±10%
‌Measurement Time‌	<20min (digestion time adjustable)
‌Measurement Modes‌	Adjustable time interval, fixed time point, or triggered measurement
‌Calibration Modes‌	Automatic calibration (1~99 days adjustable) Manual calibration based on actual water samples
‌Maintenance Cycle‌	1 month per session; ~30min per maintenance
‌Human-Machine Interface‌	Touchscreen display and command input
‌Self-Diagnosis & Protection‌	Self-diagnoses operational status; retains data during anomalies/power outages Automatically clears residual reactants and resumes operation after reset/power recovery
‌Data Storage‌	5-year data capacity
‌Input Interface‌	Digital input
‌Output Interfaces‌	1× RS232, 1× RS485 2× 4~20mA analog outputs
‌Operating Environment‌	Indoor use; recommended temperature: 5~28℃, humidity ≤90% (non-condensing)
‌Power Supply‌	Voltage: AC 220±10% V Frequency: 50±0.5 Hz Power: ≤150W (excluding sampling pump)
‌Dimensions‌	520H × 370W × 265D (mm)
