Total Iron Fe Online Water Quality Analyzer

Brand Name:	JUGE
Model Number:	AG9010Fe
MOQ:	1 Unit
Price:	USD2000-7000
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

‌Test Method‌:

Phenanthroline Spectrophotometric Method

‌Measuring Range‌:

0~5mg/L (segmented Measurement, Expandable)

‌Detection Limit‌:

≤0.02mg/L

‌Resolution‌:

0.001mg/L

‌Accuracy‌:

±5%

‌Power Supply‌:

AC 220±10% V

‌Dimensions‌:

520H × 370W × 265D (mm)

Weight‌:

40kg

Supply Ability:

100 Unit/Week

Highlight:

5mg/l water quality monitor

5mg/l online water quality analyzer

spectrophotometric method water quality monitor

Product Description

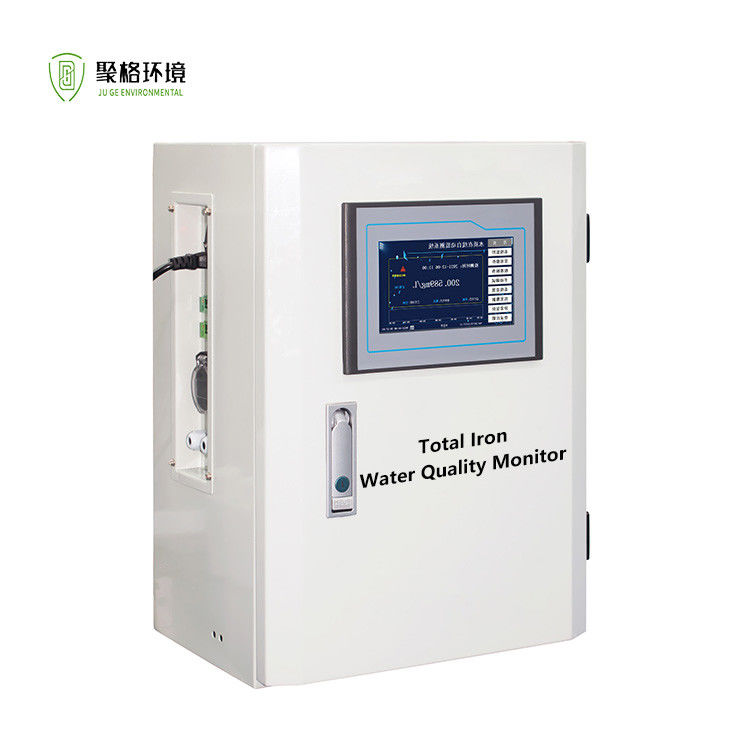

Total Iron Fe Online Water Quality Analyzer

>>Overview

Iron is an essential trace element for the human body. While iron itself is non-toxic, excessive intake or accidental overdose of iron products can lead to ‌iron poisoning‌. Acute iron poisoning primarily occurs in children, while chronic cases are more common in adults over 45 years old, predominantly males. Studies suggest iron toxicity may also trigger epilepsy.This monitor operates autonomously under ‌long-term unattended continuous operation‌ based on field configurations. It is widely applicable to industrial pollutant discharge wastewater, industrial process wastewater, and similar scenarios. Depending on the complexity of on-site testing conditions, optional preprocessing systems can be integrated to ensure ‌reliable testing processes‌, ‌accurate results‌, and compliance with diverse operational demands.

>>Principle

The product employs the ‌spectrophotometric method‌ for iron detection. Under specific acidic conditions, ferrous ions (Fe²⁺) in the sample react with an indicator to form a ‌red-colored complex‌. The monitor detects this color intensity change, converts it into iron concentration values, and outputs the results. The amount of colored complex generated corresponds to the total iron concentration.

>>Technical Parameter

‌Test Method‌	Phenanthroline Spectrophotometric Method
‌Measuring Range‌	0~5mg/L (segmented measurement, expandable)
Detection Limit	≤0.02mg/L
Resolution	0.001mg/L
Accuracy	±5%
‌Repeatability‌	≤±5%
‌Drift (24h)‌	Zero drift: ±5% Span drift: ±10%
‌Measurement Time‌	<30min (digestion time adjustable)
‌Measurement Modes‌	Adjustable time interval, fixed time point, or triggered measurement
‌Calibration Modes‌	Automatic calibration (1~99 days adjustable) Manual calibration based on actual water samples
‌Maintenance Cycle‌	1 month per session; ~30min per maintenance
‌Human-Machine Interface‌	Touchscreen display and command input
‌Self-Diagnosis & Protection‌	Self-diagnoses operational status; retains data during anomalies/power outages Automatically clears residual reactants and resumes operation after reset/power recovery
‌Data Storage‌	5-year data capacity
‌Input Interface‌	Digital input
‌Output Interfaces‌	1× RS232, 1× RS485 2× 4~20mA analog outputs
‌Operating Environment‌	Indoor use; recommended temperature: 5~28℃, humidity ≤90% (non-condensing)
‌Power Supply‌	Voltage: AC 220±10% V Frequency: 50±0.5 Hz Power: ≤150W (excluding sampling pump)
‌Dimensions‌	520H × 370W × 265D (mm)
