Manganese Online Water Quality Analyzer

Brand Name:	JUGE
Model Number:	AG9010Mn
MOQ:	1 Unit
Price:	USD2000-7000
Packaging Details:	Neutral carton
Payment Terms:	Online order,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

‌Test Method‌:

Periodic Acid Colorimetric Method

‌Measuring Range‌:

0~30mg/L (segmented Measurement, Expandable)

‌Detection Limit‌:

≤0.02mg/L

‌Resolution‌:

0.001mg/L

‌Accuracy‌:

±5%

‌Power Supply‌:

AC 220±10% V

‌Dimensions‌:

520H × 370W × 265D (mm)

Weight‌:

40kg

Supply Ability:

100 Unit/Week

Highlight:

Manganese Online Water Quality Analyzer

Manganese Water Quality Analyser

Product Description

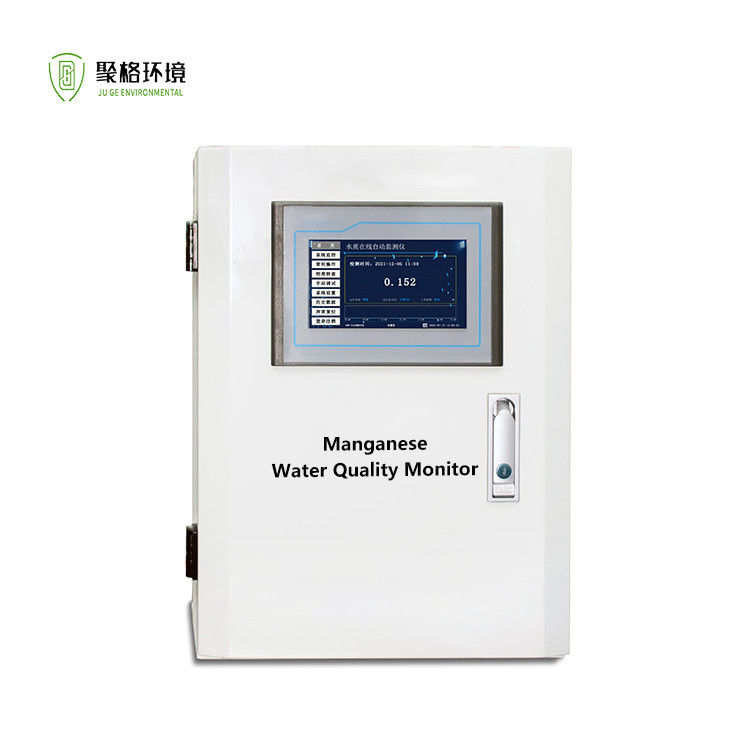

Manganese Online Water Quality Analyzer

>>Overview‌

Manganese (Mn) is a hard, brittle, silvery-white metal widely found in nature. It constitutes approximately 0.25% of soil and is abundant in tea, wheat, and nuts. In metallurgy, manganese is used to produce specialty steels and serves as a deoxidizer and desulfurizer in steelmaking. As an essential trace element, manganese is critical for forming enzymes with vital physiological roles. The recommended daily intake is ‌3–9 mg‌, and it is necessary for healthy bone structure. However, ‌chronic occupational manganese poisoning‌ results from prolonged exposure to manganese dust or fumes, primarily affecting the nervous system. Early symptoms include neurasthenic syndrome and autonomic dysfunction. Advanced stages involve extrapyramidal damage, psychiatric symptoms, and severe cases may manifest as ‌Parkinsonian syndrome‌ or ‌toxic psychosis‌.This monitor operates autonomously under ‌long-term unattended continuous operation‌ based on field configurations. It is widely applicable to industrial wastewater discharge, process wastewater, industrial and municipal sewage treatment plants, and similar environments. Depending on on-site complexity, optional preprocessing systems can be integrated to ensure ‌reliable testing processes‌, ‌accurate results‌, and compliance with diverse operational demands.

>>Principle

The product employs the ‌spectrophotometric method‌ for manganese detection. After mixing the water sample with a buffer agent, manganese is oxidized to its higher oxidation state using a strong oxidizing agent. In the presence of a buffer solution and indicator, the oxidized manganese ions react with the indicator to form a ‌colored complex‌. The monitor detects this color intensity change at specific wavelengths, converts it into manganese concentration values, and outputs the results. The amount of colored complex generated corresponds to the total manganese concentration.

>>Technical Parameter

‌Test Method‌	Periodic Acid Colorimetric Method
‌Measuring Range‌	0~30mg/L (segmented measurement, expandable)
Detection Limit	≤0.02mg/L
Resolution	0.001mg/L
Accuracy	±5%
‌Repeatability‌	≤±5%
‌Drift (24h)‌	Zero drift: ±5% Span drift: ±10%
‌Measurement Time‌	<30min (digestion time adjustable)
‌Measurement Modes‌	Adjustable time interval, fixed time point, or triggered measurement
‌Calibration Modes‌	Automatic calibration (1~99 days adjustable) Manual calibration based on actual water samples
‌Maintenance Cycle‌	1 month per session; ~30min per maintenance
‌Human-Machine Interface‌	Touchscreen display and command input
‌Self-Diagnosis & Protection‌	Self-diagnoses operational status; retains data during anomalies/power outages Automatically clears residual reactants and resumes operation after reset/power recovery
‌Data Storage‌	5-year data capacity
‌Input Interface‌	Digital input
‌Output Interfaces‌	1× RS232, 1× RS485 2× 4~20mA analog outputs
‌Operating Environment‌	Indoor use; recommended temperature: 5~28℃, humidity ≤90% (non-condensing)
‌Power Supply‌	Voltage: AC 220±10% V Frequency: 50±0.5 Hz Power: ≤150W (excluding sampling pump)
‌Dimensions‌	520H × 370W × 265D (mm)
